Hot Stage Polarized Microscope

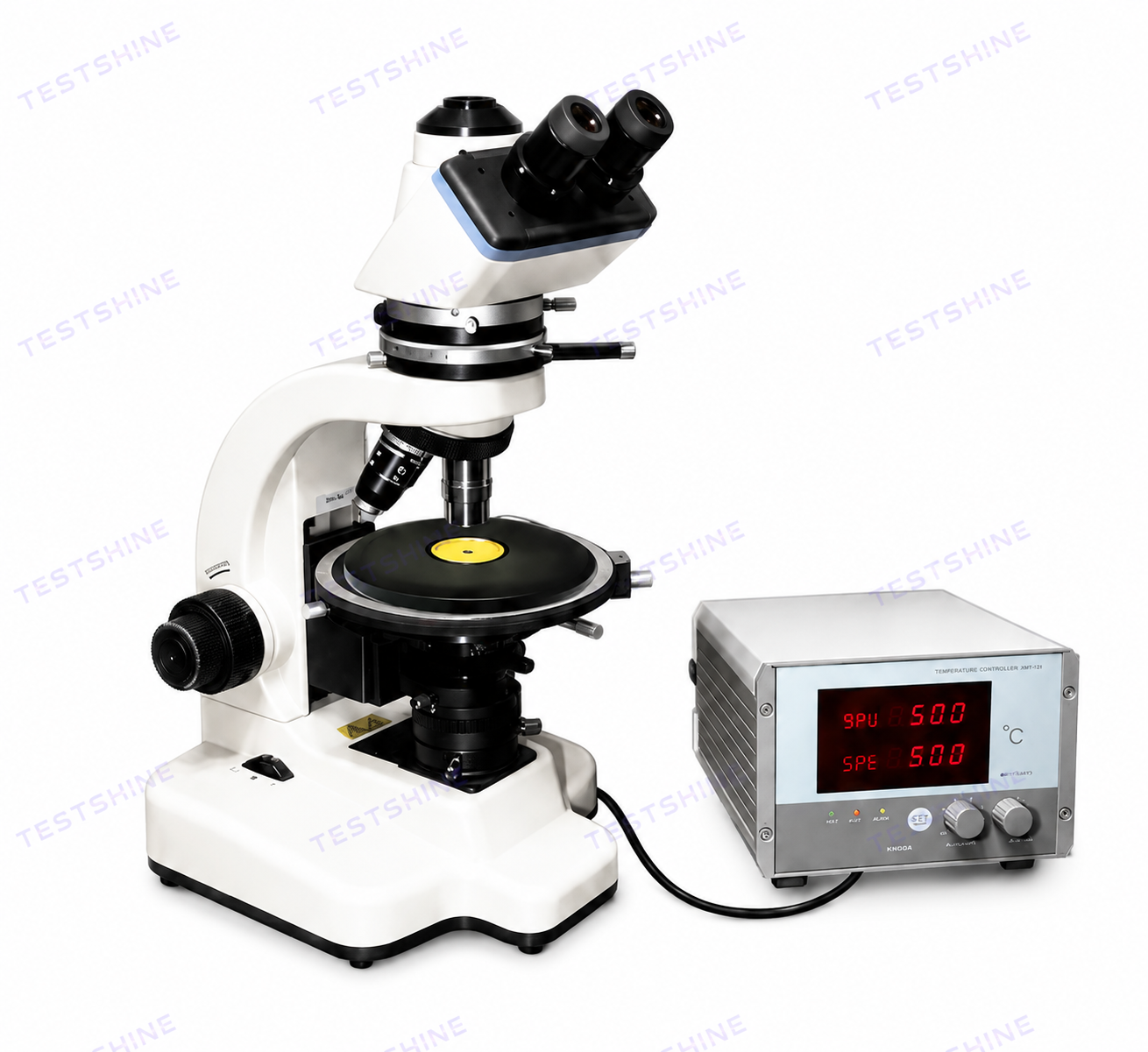

The TS-HSP1 Hot Stage Polarized Microscope combines a precision polarizing microscope with a constant-temperature heating stage for real-time observation of birefringence, melting, crystallization, sublimation, and other thermal phase transitions up to 500°C.

Key Specifications

Temperature Range

Room Temperature – 500°C

Temperature Accuracy

≤±0.5%

Heating/Cooling Rate

1–60 sec/°C

Imaging

6.3 MP Camera, USB 3.0

Polarizing MicroscopeHot StageThermal AnalysisMaterials Science

Request a Quote Request Sample Testing

Global Shipping

50+ countries

2-Year Warranty

Parts & service

Expert Support

Dedicated team

Have a question about this instrument?

Talk to an expert

Product Introduction

The TS-HSP1 Hot Stage Polarized Microscope is an integrated system combining a transmitted/reflected polarizing microscope with a precision constant-temperature heating stage. The polarizing microscope uses polarized light to observe and analyze materials exhibiting birefringence, supporting single polarization, orthogonal (crossed-polarizer), and conoscopic observation modes.

The integrated heating stage extends this capability to thermal microscopy, enabling real-time observation and recording of melting, sublimation, crystallization, and other phase-transition behavior as the specimen is heated from room temperature up to 500°C. Together, the microscope and heating stage form a complete platform for the structural and thermal characterization of birefringent and thermally responsive materials, suited to both research and instructional use.

Key Features

Polarizing Microscope System

Infinity-corrected optical system with modular design and infinity long working-distance plan objectives, providing a wide, clear field of view.
Wide-field WF10X plan eyepieces (field number Φ22 mm) with a dedicated dividing eyepiece for precise centering.

Precision Constant-Temperature Hot Stage

24K gold stage surface that resists high-temperature ablation, oxidation, blackening, and spalling, and is resistant to acid and alkali without contaminating specimens.
Steel structure support providing drop and vibration resistance far superior to ceramic tube-supported designs.

Technical Parameters — Polarizing Microscope

Optical System	Infinity-corrected optical system with modular design
Eyepiece	Wide field WF10X(Φ22mm); Dividing eyepiece (field number: Φ22mm) 0.10mm/Div
Objective	Strain-free plan achromatic objective (no cover glass); PL L5X/0.12 (Work distance): 26.1 mm; PL L10X/0.25 (Work distance): 20.2 mm; PL L40X/0.60 (spring) (Work distance): 3.98 mm; PL L60X/0.70 (spring) (Work distance): 2.03 mm
Transmission / Reflection Illuminating System	12V30W halogen, brightness enable control; Polarizer can be rotated 360°; Analyzer can be rotatable 360° with scale and minimum vernier; Integrated field and aperture diaphragm.
Nosepiece	Quadruple (the center of nosepiece is adjustable)
Intermediate Attachment	Puller type Bertrand lens
Compensator	λ compensator, λ/4 compensator, and quartz wedge compensator
Eyepiece Tube	Trinocular is inclined 30˚ and enable to shoot in 100% light flux.
Focus System	Coaxial coarse/fine focus with tension adjustable and up stop device, minimum division of fine focusing: 2μm.
Imaging System	6.3MP/Max: 3072*2048, USB 3.0 interface; Functions: Image capture, video recording, measurement, focus stacking, and image stitching

Technical Parameters — Precision Microscope Constant Temperature Stage

Input Power	AC 220V ±10%, 45–60 Hz
Heating Stage Working Power	DC 24V, 1.5A
Power Consumption	75W
Temperature Range	Room temperature to 500°C
Settable Heating Rate	1–60 sec/°C (heating/cooling share the same control knob)
Settable Cooling Rate	1–60 sec/°C (heating/cooling share the same control knob) (cannot exceed the natural cooling rate)
Heating/Cooling Control	Automatic identification and switching via single-knob setting
Maximum Outer Body Temperature	When heating body is at 500°C and ambient is 25°C: ≤70°C
Maximum Stage Load	200 g
Working Mode	Continuous operation
Measurement Accuracy	Full range ≤±0.5%
System Fluctuation	±1°C
Instant Constant-Temperature Response Time	≤0.01 sec
Stage Dimensions	Outer diameter Φ108 mm × thickness 10.5 mm; heating body Φ32 mm × thickness 8.5 mm; light aperture 4.0 mm; weight 215 g
Controller Dimensions	200 × 240 × 130 mm
Controller Weight	4.19 kg

Applications

The TS-HSP1 is suitable for research and educational applications requiring combined polarized-light observation and controlled thermal analysis of materials, including:
