PLC-Controlled Filtrability Test Instrument for Plastic Raw Materials and Masterbatch Evaluation

1 / 2

TS-8186-B

Filtrability Test Instrument

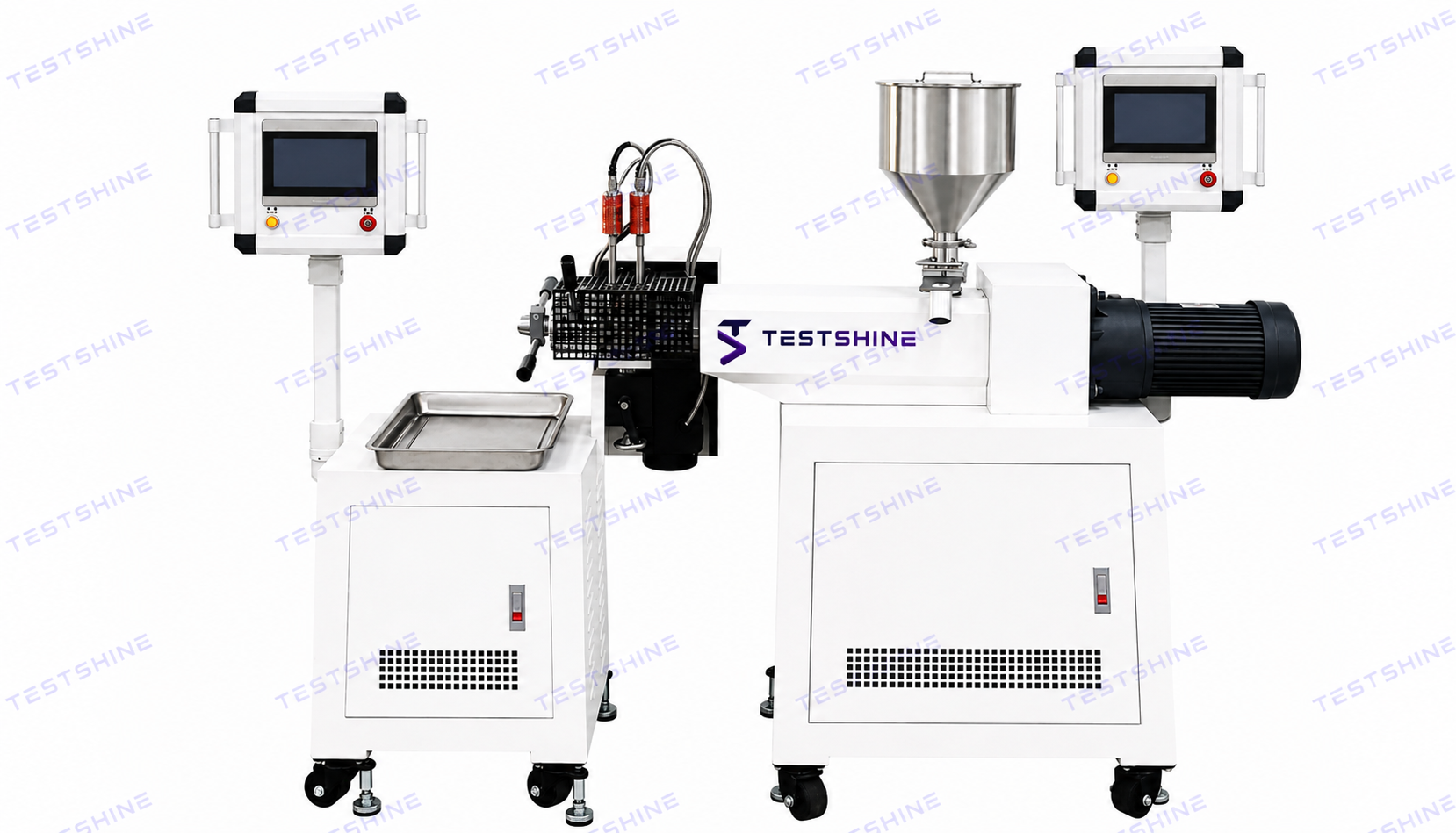

PLC-controlled filtrability test instrument engineered for evaluating the filtration performance of plastic raw materials, color masterbatches, pigments, fillers, and other particulate polymer blends.

Key Specifications

Test Standard

EN 13900-5:2005

Temperature Range

Up to ~300°C

Temperature Accuracy

±1°C

Screw Diameter

Φ20 mm

Screw Rotation Speed

0–95 rpm

Melt Pressure Range

0–40 MPa

Drive Motor

2.2 kW

Control System

PLC Color Touchscreen

Filtrability Test InstrumentFiltration TestingSingle Screw ExtrusionMasterbatch TestingPolymer Testing

Request a Quote Request Sample Testing

Global Shipping

50+ countries

2-Year Warranty

Parts & service

Expert Support

Dedicated team

Have a question about this instrument?

Talk to an expert

Product Information

The TS-8186-B is a PLC controlled filtrability test instrument developed for evaluating the filtration performance of plastic raw materials, color masterbatches, and other solid particulate blends. The instrument's test methodology is compliant with the European standard EN13900-5:2005 and is well suited to PP, PE, and other polyolefin materials, as well as pigment dispersion assessment in masterbatch formulations. Built around a precision single screw extruder, a melt metering pump, a fine filtration screen, and high accuracy melt temperature and pressure sensors, the TS-8186-B delivers repeatable, data driven measurements that support product development, formulation optimization, and quality control across the plastics processing industry.

Key Features

Precision Filtration Performance Evaluation

The TS-8186-B is developed for evaluating the filtration performance of plastic raw materials, color masterbatches, and other solid particulate blends.

Precision Single Screw Extrusion System

The instrument is built around a precision single screw extruder with a Φ20 mm screw, 1:28 length/diameter ratio, and 0–95 rpm frequency-controlled rotation speed.

High-Accuracy Melt Monitoring

High precision melt temperature and melt pressure sensors continuously monitor melt conditions, with the 0–40 MPa melt pressure sensor providing head pressure detection and interlock loop control of host operation.

PLC-Based Process Monitoring

The PLC programmable color touch screen provides man-machine interface operation and dynamically displays and monitors the extrusion process, including temperature control, drive, speed, pressure, and interlocking functions.

Technical Parameters

Parameter	Specification
Temperature Range	~300℃
Temperature Accuracy	±1℃
Screw Diameter	Φ20 mm
Length/Diameter Ratio	1:28
Screw Rotation Speed	0–95 rpm, frequency controlled (Brand: ABB inverter from the United States)
Screw Material	38CrMoAl chromium-molybdenum steel, surface treated by tempering, nitriding, chroming, polishing and super-precision grinding; roughness Ra≤0.4 μm, nitriding depth≥0.6 mm, hardness HRC55~60 (Brand: Jinhailuo Screw)
Barrel Material	45# carbon structural steel, surface treated by tempering, nitriding, chroming, polishing and super-precision grinding; roughness Ra≤0.4 μm, nitriding depth≥0.6 mm, hardness HRC55~60 (Brand: Jinhailuo Barrel)
Heating Zone	Heaters in 3 areas of the charging barrel and 2 areas of the handpiece; each zone fitted with a copper cooling fin covered by a stainless steel safety wind shield
Cooling Zone	Three groups of multi-wing blowing fans providing quiet, strong forced cooling (Brand: Dongguan Xiangyue Fan)
Hopper	304 stainless steel construction, equipped with a slide-type quick discharge device
Melt Temperature	High precision melt temperature sensor for continuous monitoring of melt temperature changes
Melt Pressure	0–40 MPa high precision melt pressure sensor detecting head pressure changes, with interlock loop control of host operation
Drive Motor	2.2 kW precision heavy geared motor with constant torque power output control (Brand: TaiBang Precision Motor)
Control System	PLC programmable color touch screen with man-machine interface; dynamically displays and monitors the extrusion process, including temperature control, drive, speed, pressure, and interlocking functions (Brand: Siemens PLC from Germany, Weinview Display, Delixi Low-Voltage Control Electrical Appliances)
Safety Protection	Melt pressure interlocked with the host for overpressure alarm protection; melt temperature interlocked with the host for low temperature start-up protection
Power	3∮, AC380V, 50Hz, three-phase five-wire
Dimensions	1425×550×940 (W×D×H) mm
Weight	About 175 KG
