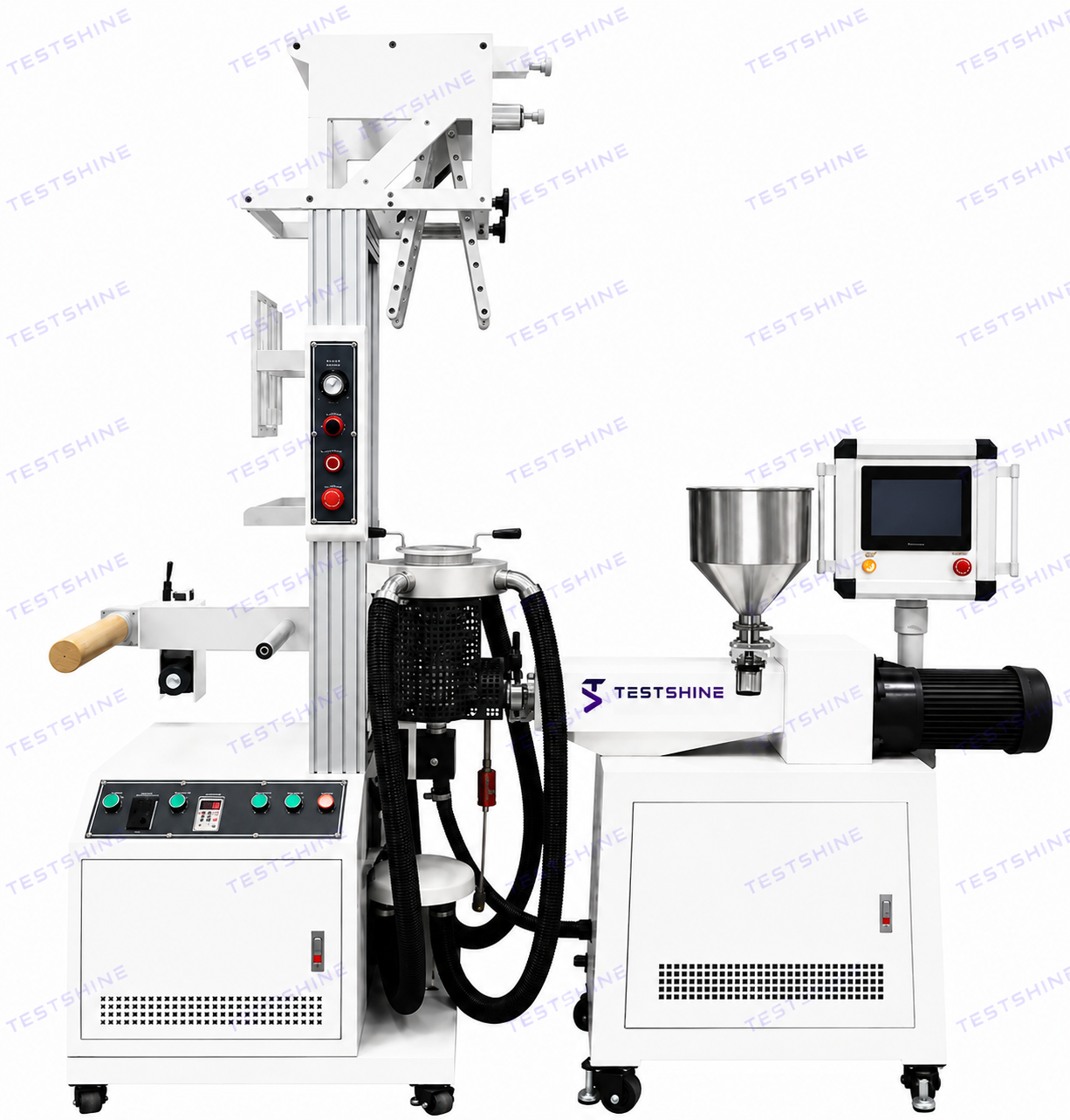

Lab Film Blowing Machine
PLC-Controlled Laboratory Film Blowing Machine for Polymer Processing and Film Production Evaluation
1 / 2Lab Film Blowing Machine
PLC-controlled laboratory film blowing machine engineered for evaluating polymer processing behavior, extrusion characteristics, color concentrate dispersion, gel content, and melt mixing performance.
Key Specifications
Processing Capacity
About 3–6 kg/h
Temperature Range
Up to ~300°C
Temperature Accuracy
±1°C
Screw Diameter
20 mm
Screw Rotation Speed
0–95 rpm
Melt Pressure Range
0–35 MPa
Drive Motor
2.2 kW
Control System
PLC Color Touchscreen
Global Shipping
50+ countries
2-Year Warranty
Parts & service
Expert Support
Dedicated team
Have a question about this instrument?
Talk to an expertProduct Information
The TS-8178-B Lab Film Blowing Machine, built around an integrated PLC control system, is designed to evaluate the processing behavior of polymer materials. It allows technicians to closely examine gel content and color distribution within a compound, assess how well color concentrates disperse through the melt, and monitor mixing and extrusion characteristics under controlled conditions. Beyond material evaluation, the system is equally capable of producing small-format films, making it a practical addition to polymer research, quality control, and product development laboratories.
Key Features
PLC Programmable Control System
PLC programmable color touch screen, man-machine interface operation system, can dynamically display and monitor extrusion process, including temperature control, driving, speed, pressure, interlocking spreading function.
Precise Melt Monitoring
A 0-35MPa high precision melt pressure sensor detects changes in head pressure, while a high-precision melt temperature sensor monitors melt temperature changes.
Controlled Screw Extrusion
The 20mm screw provides 0-95rpm frequency control, allowing the extrusion process to be adjusted according to different polymer processing requirements.
Efficient Barrel Heating and Cooling
The system uses a 3-zone heater for the barrel and a 2-zone heater for the machine head, while three groups of multi-wing fans provide forced cooling.
Technical Parameters
| Parameter | Specification |
| Output | About 3-6kg/h, depending on the raw material process formula |
| Temperature Range | ~300℃ |
| Temperature Accuracy | ±1℃ |
| Screw Diameter | 20mm |
| Length Ratio | 1:28, other length diameter ratio is optional |
| Rotation Speed of Screw | 0-95rpm frequency control |
| Screw Material | Made of 38CrMoAl chromium-molybdenum steel. With the surface-layer processing of tempering, nitriding, chroming, polishing and super-precision grinding, roughness Ra≤0.4μm, nitriding depth≥0.6mm, the hardness HRC55~60. |
| Barrel Material | Made of 45# carbon structural steel, the surface is treated by quenching and tempering, nitriding, chrome plating, polishing and ultra-fine grinding, the roughness Ra≤0.4μm, the depth of the nitride layer reaches ≥0.6mm, and the hardness is HRC55~60. |
| Heating Zone | 3-zone heater for barrel, 2-zone heater for machine head, covered with safety shield |
| Cooling Zone | Three groups of multi-wing fans force cooling, quietly and strongly |
| Hopper | 304 stainless steel, equipped with slide rail type rapid discharge device and transparent discharge seat, which can observe the discharge at any time |
| Melt Pressure | 0-35MPa high precision melt pressure sensor detects changes in head pressure, interlock loop control of the host running |
| Melt Temperature | High-precision melt temperature sensor monitors melt temperature changes |
| Quick Change Chuck | C-type snap ring connection, easy for quick connection with downstream equipment |
| Drive Motor | 2.2kw precision gear reduction motor |
| Control System | PLC programmable color touch screen, man-machine interface operation system, can dynamically display and monitor extrusion process, including temperature control, driving, speed, pressure, interlocking spreading function |
| Safety Protection | The melt pressure is interlocked with the host for overpressure alarm protection; the melt temperature is interlocked with the host for low temperature start-up protection |
| Power | 3∮，AC380V，50Hz Three-phase and five-line |
| Dimension | 1425×550×1360 (W×D×H)mm ( excluding adjustable electric cabinet ) |
| Weight | 175kg |
Applications
Polymer Film Production
Used for laboratory-scale production of small-format polymer films through controlled extrusion and film blowing.
Polymer Processing Research
Used to evaluate the processing behavior and extrusion characteristics of polymer materials under controlled temperature, screw-speed, pressure, and processing conditions.
Color Concentrate Dispersion Evaluation
Used to assess the dispersion of color concentrates within polymer melts during controlled extrusion processing.
Polymer Quality Control and Product Development
Used in laboratory quality-control and product-development work for evaluating polymer processing behavior and producing film samples for further testing.
