Product Information

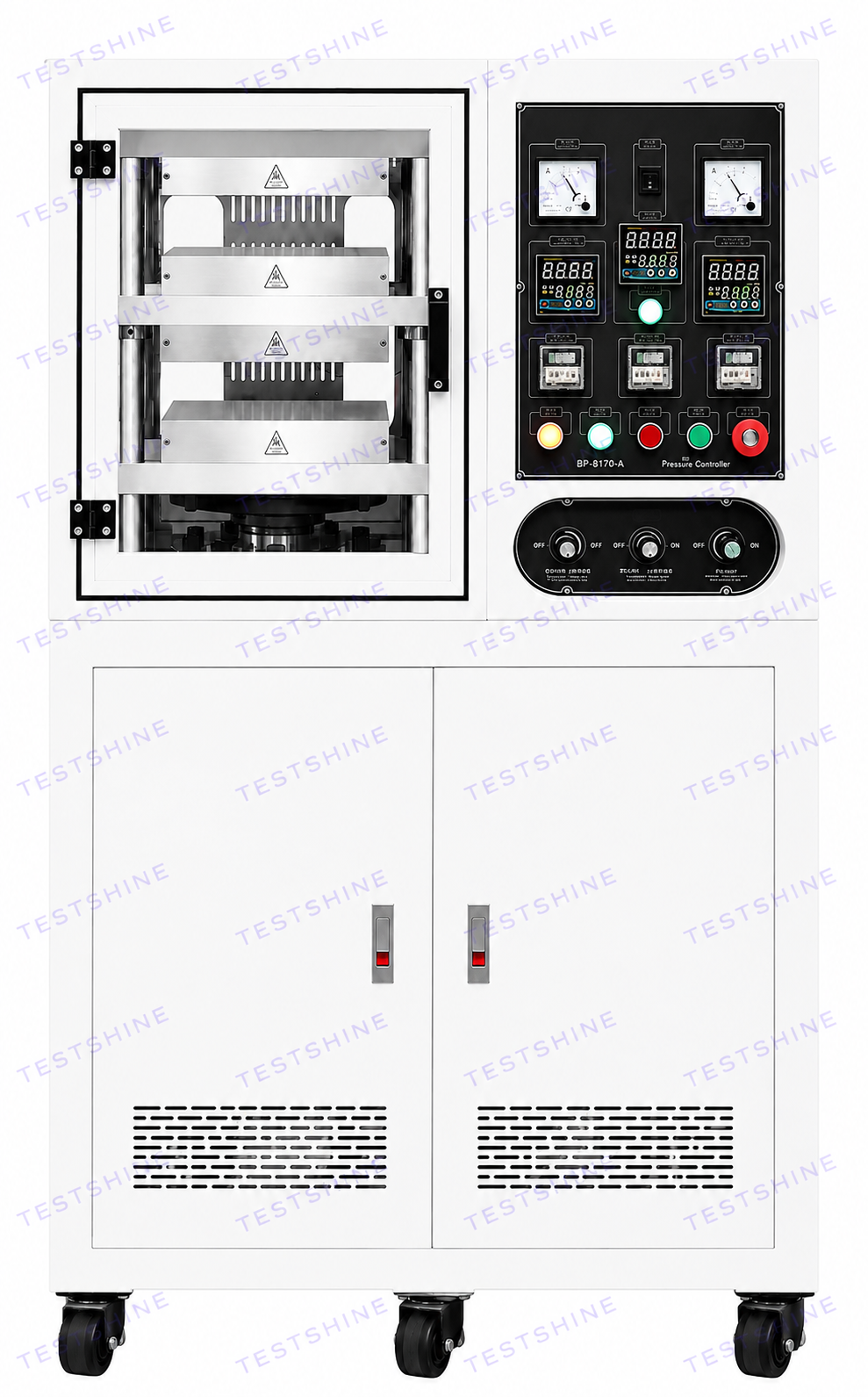

The TS-8170-A is a precision laboratory press engineered for controlled material shaping under combined heat and pressure. The test sample is positioned in a casting mould and clamped between electrically heated platens, where temperature and pressure are applied to form the specimen. Beyond shaping, the resulting sample supports material testing and serves as a dependable reference point when scaling a formulation toward full-scale production.

Key Features

20-Ton Pressing Capacity

The TS-8170-A provides a 20-ton capacity for controlled laboratory material shaping under combined heat and pressure.

Manual and Automatic Working Modes

The press supports manual and automatic working modes, providing flexibility for different laboratory pressing requirements.

Independent Heating and Cooling Pressing Plates

The system consists of two working layers, with the upper-layer mould pressing plate providing heating and the lower-layer mould pressing plate providing cooling.

Programmable Pressure and Temperature Control

The system provides preset two-stage gradient pressure, adjustable temperature control from RT～300℃, and LED digital control for temperature, time, pressure, drive, and other interlocking control functions.

Technical Parameters

Applications

Laboratory Material Shaping

Used for controlled shaping of test samples under combined heat and pressure in laboratory material testing.

Rubber and Polymer Specimen Preparation

Suitable for preparing laboratory specimens from rubber and polymer materials using heated pressing and controlled pressure.

Material Formulation Evaluation

Used to prepare specimens for evaluating material formulations under controlled temperature and pressure conditions.

Production Formulation Reference

Used to produce laboratory-scale samples that can serve as a reference point when scaling a formulation toward full-scale production.
