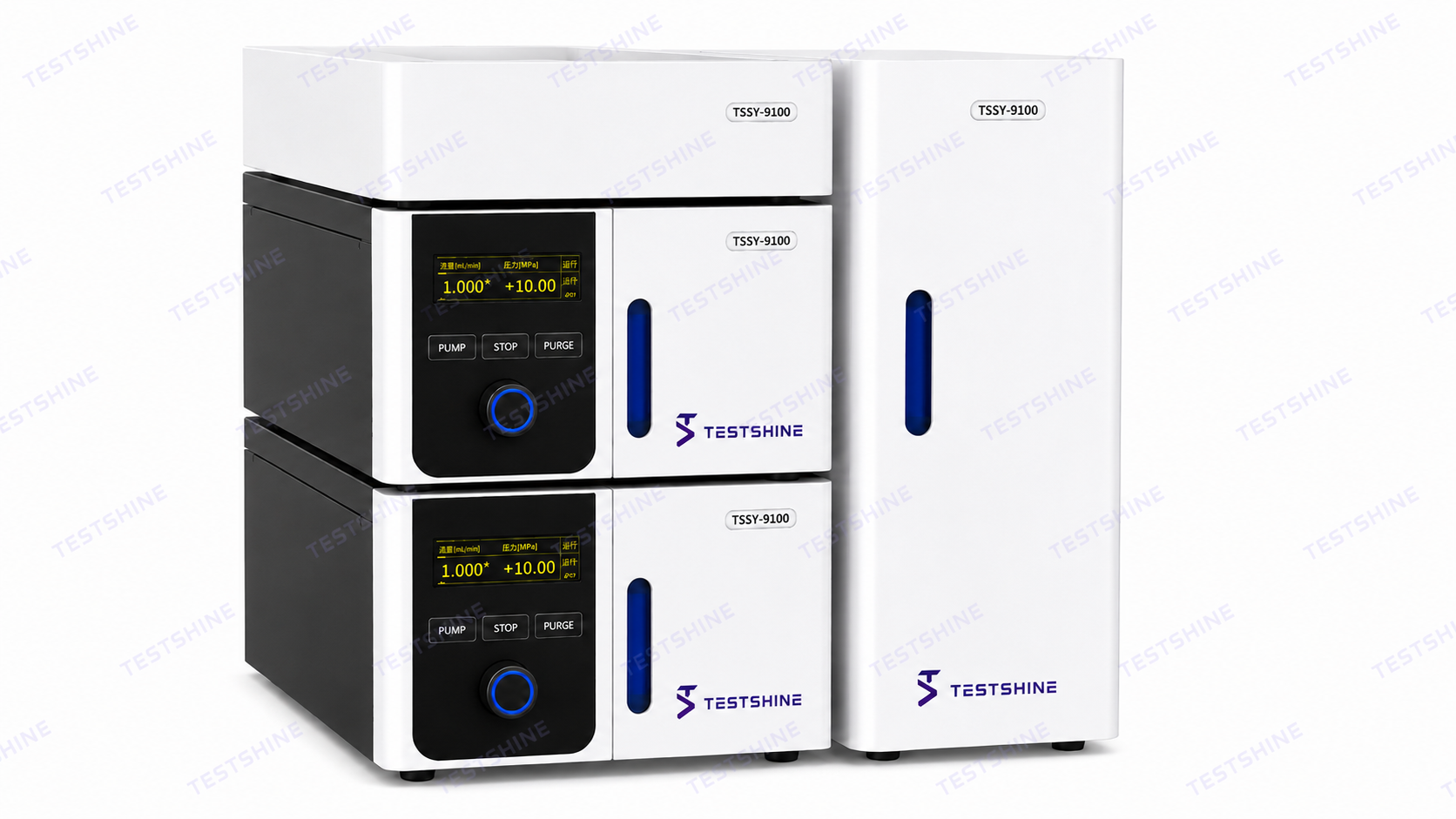

TSSY-9100 High Performance Liquid ChromatographTSSY-9100 High Performance Liquid Chromatograph The TSSY-9100 is a bench-top HPLC system designed for laboratories that require precise, repeatable separation across pharmaceutical, environmental, and food safety applications.
Key Specifications
Flow Rate
0.001 – 10 mL/min
Max Pressure
42 MPa / 6,000 psi
Wavelength
190 – 900 nm
Baseline Noise
≤ 0.5 × 10⁻⁵ AU
Global Shipping
50+ countries
2-Year Warranty
Parts & service
Expert Support
Dedicated team
Have a question about this instrument?
Talk to an expertProduct Introduction
The TSSY-9100 High Performance Liquid Chromatograph (HPLC) is a high-precision analytical instrument designed for reliable qualitative and quantitative analysis across pharmaceutical, environmental, food, chemical, and research laboratories. Engineered with outstanding reliability and long-term stability, the system delivers consistent analytical performance for both routine laboratory testing and advanced research applications.
The modular architecture integrates a high-pressure pump, autosampler, UV-Vis detector, column oven, chromatography workstation, and optional fraction collector, allowing users to configure the system according to different analytical requirements. Its intelligent software platform simplifies instrument operation while providing comprehensive control, data acquisition, analysis, and regulatory compliance features.
Designed for continuous laboratory operation, the TSSY-9100 combines accurate solvent delivery, precise sample injection, stable temperature control, and highly sensitive detection to ensure exceptional chromatographic performance. Its expandable design supports multiple detector configurations, making it suitable for a wide variety of analytical workflows.
Key Features
- High-Precision Binary High-Pressure Pump with four-solvent management capability for flexible gradient analysis.
- Intelligent Autosampler with accurate injection, online needle washing, and optional sample chamber temperature control.
- Dual-Wavelength UV-Vis Detector for simultaneous multi-wavelength analysis with excellent sensitivity and stability.
- High-Accuracy Column Oven featuring precise temperature control and optional automatic dual-column switching.
- Powerful Chromatography Workstation with real-time monitoring, audit trails, electronic signatures, and database management.
- Modular Expansion Design supporting multiple detectors and fraction collector configurations for diverse laboratory applications.
Technical Parameters
| Instrument Type | High Performance Liquid Chromatograph (HPLC) |
| Pump Type | Double-Piston Reciprocating High Pressure Pump |
| Solvent Management | Up to 4 Mobile Phases with Programmable Switching |
| Flow Rate (Analytical) | 0.001 – 10 mL/min |
| Flow Rate Setting Resolution | 0.001 mL/min |
| Flow Rate Precision | ≤0.06% |
| Maximum Working Pressure | 48 MPa |
| Pump Head Material | 316L Stainless Steel (Optional PEEK, Titanium Alloy, Hastelloy, PCTFE) |
| Injection Volume | 0 – 9999 μL (1 μL Increment) |
| Injection Modes | Full Loop, Partial Loop Fill, μL Pickup Injection |
| Sample Capacity | 96 Sample Vials |
| Sample Carryover | <0.05% Standard Flush, <0.01% Additional Flush |
| UV Light Source | Deuterium (D₂) Lamp |
| Wavelength Range | 190 – 700 nm |
| Wavelength Accuracy | ±0.1 nm |
| Wavelength Precision | 1 nm |
| Linear Range | 0 – 3 AU |
| Baseline Noise | ±0.5 × 10⁻⁵ AU |
| Baseline Drift | 1.0 × 10⁻⁴ AU/h |
| Column Oven Temperature Range | Ambient +5°C to 100°C |
| Temperature Setting Resolution | 0.1°C |
| Temperature Accuracy | ±0.1°C |
| Column Capacity | 2 Columns |
| Software | Integrated Chromatography Workstation with Database Management |
| Data Compliance | Audit Trail, Access Management, Electronic Signature |
| Communication | Open Communication Protocol Compatible with Third-Party Software |
| Power Supply | AC 220V, 50Hz (Customized Options Available) |
Applications
Analysis of Typical Test Cases
The TSSY-9100 High Performance Liquid Chromatograph provides highly accurate separation, identification, and quantification of compounds within complex mixtures. Its precise solvent delivery, stable temperature control, sensitive UV detection, and intelligent chromatography software ensure reliable analytical results for routine quality control, research, product development, and regulatory testing across multiple industries.
Pharmaceutical Quality Control
The TSSY-9100 is widely used for the analysis of pharmaceutical raw materials, active pharmaceutical ingredients (APIs), finished dosage forms, and impurity profiling. Its excellent repeatability and high-pressure gradient capability enable laboratories to perform precise quantitative analysis while complying with regulatory requirements for pharmaceutical manufacturing and quality assurance.
Food and Beverage Analysis
The system accurately determines preservatives, food additives, vitamins, sugars, organic acids, caffeine, and other nutritional components in food and beverage products. High sensitivity and excellent chromatographic separation ensure reliable testing for product quality, food safety, and regulatory compliance.
Environmental Analysis
The TSSY-9100 is suitable for monitoring pollutants in environmental samples, including pesticides, phenols, organic contaminants, and industrial chemicals in water, soil, and wastewater. Stable flow control and precise detection provide dependable analytical performance for environmental monitoring laboratories.
Chemical Industry Research
Chemical manufacturers use the system for purity analysis, reaction monitoring, intermediate identification, and formulation development. The modular design allows flexible detector configurations to meet a wide range of analytical requirements during research, production, and quality control.
Biotechnology and Academic Research
Universities and research laboratories utilize the TSSY-9100 for biomolecule separation, biochemical analysis, natural product research, and advanced analytical studies. Its expandable architecture and intelligent chromatography workstation make it an ideal platform for scientific research and laboratory education.
