FTIR Spectrometer
Fourier Transform Infrared Spectrometer
1 / 3FTIR Spectrometer

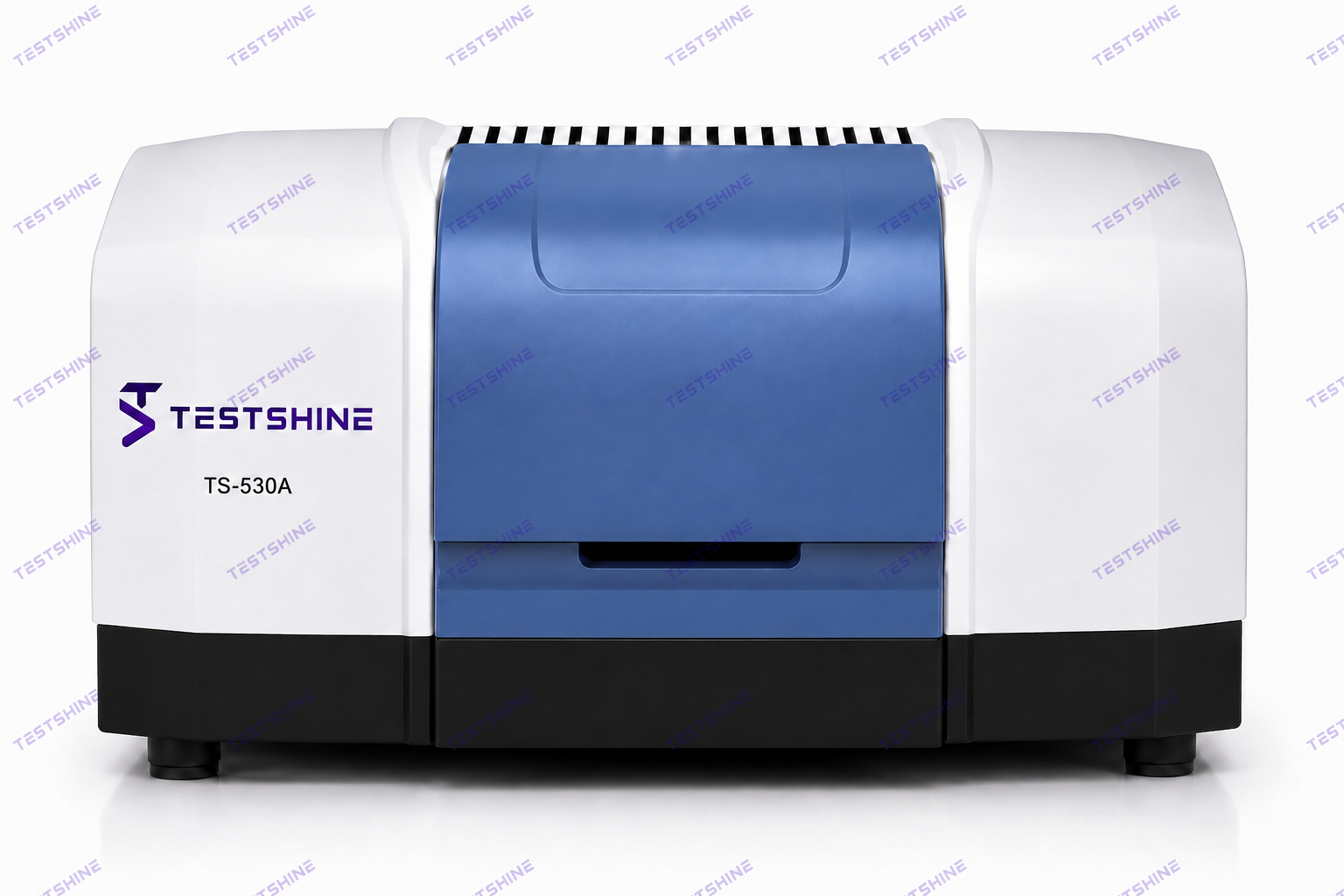

The TS-530A FTIR Spectrometer delivers fast, accurate, and non-destructive material analysis with high sensitivity, excellent stability, and intelligent software for research and quality control applications.
Global Shipping
50+ countries
2-Year Warranty
Parts & service
Expert Support
Dedicated team
Have a question about this instrument?
Talk to an expertProduct Introduction
The TS-530A FT-IR Spectrometer is a high-performance Fourier Transform Infrared (FTIR) analytical instrument designed to deliver exceptional sensitivity, stability, and reliability for modern laboratories. Built with an advanced optical system and intelligent electronic architecture, it provides highly accurate infrared spectral analysis for research, quality control, material identification, and routine laboratory testing.
Designed with a Cube-Corner Michelson interferometer, high-intensity IR source, intelligent moisture-proof construction, and advanced digital signal processing, the TS-530A ensures long-term operational stability while minimizing maintenance requirements. Its modular design and flexible accessory compatibility make it suitable for a broad range of analytical applications.
The instrument also supports Ethernet and Wi-Fi communication for remote operation, cloud-based data management, and intelligent laboratory integration. Combined with its powerful software workstation and multiple detector options, the TS-530A delivers a complete solution for laboratories requiring precise, efficient, and dependable FTIR analysis.
Key Features
- High-Sensitivity Optical System with Cube-Corner Michelson Interferometer for superior spectral accuracy and long-term stability.
- Intelligent Real-Time Instrument Monitoring for continuous diagnostics of system status, performance, and communication.
- Multiple Detector Options including Pyroelectric, Temperature-Stabilized Pyroelectric, and Optional MCT Detector.
- Dual Communication via Ethernet and Wi-Fi for remote operation, networking, and cloud integration.
- Large Modular Sample Chamber supporting ATR, liquid cells, gas cells, microscopes, thermal accessories, and other analytical modules.
- Powerful FTIR Software Workstation with real-time data acquisition, spectrum processing, reporting, and instrument management.
Technical Parameters
| Instrument Type | Fourier Transform Infrared (FT-IR) Spectrometer |
| Interferometer | Cube-Corner Michelson Interferometer |
| Beam Splitter | Multilayer Ge-Coated KBr |
| Detector | High Sensitivity Pyroelectric Detector (Standard) |
| Optional Detector | Temperature-Stabilized Pyroelectric Detector, Semiconductor Refrigerated MCT Detector |
| IR Source | High Intensity, Long Lifetime Air-Cooled Infrared Source |
| Wavenumber Range | 7800 – 350 cm⁻¹ |
| Spectral Resolution | 0.85 cm⁻¹ |
| Signal-to-Noise Ratio | Better than 20,000:1 (RMS Value) |
| Wavenumber Accuracy | ±0.01 cm⁻¹ |
| Scanning Speed | Microprocessor Controlled, Multiple Selectable Scan Speeds |
| Software | MainFTOS FTIR Software Workstation Compatible with Windows OS |
| Communication | Ethernet and Wi-Fi Communication |
| Data Output | Standard Data Format with Report Generation and Export |
| Instrument Diagnostics | Real-Time Temperature, Humidity and Self-Diagnostic Monitoring |
| Certification | Optional FDA 21 CFR Part 11, IQ/OQ/PQ Compliance |
| Operating Temperature | 10°C – 30°C |
| Operating Humidity | Less than 60% RH |
| Power Supply | AC220V ±22V, 50Hz ±1Hz (Optional AC110V) |
| Dimensions | 490 × 420 × 240 mm |
| Weight | 23.2 kg |
| Standard Accessory | Transmission Sample Holder |
| Optional Accessories | ATR, Liquid Cell, Gas Cell, Diffuse/Specular Reflection, Single & Multi-Reflection ATR, Thermal Accessories, Microscope |
Applications
Analysis of Typical Test Cases
The TS-530A FT-IR Spectrometer provides rapid and non-destructive qualitative and quantitative analysis by measuring the infrared absorption characteristics of materials. It enables accurate identification of chemical compounds, functional groups, and molecular structures, making it an indispensable analytical instrument for scientific research, industrial quality control, failure analysis, and material characterization.
Polymer and Plastic Identification
The TS-530A accurately identifies polymers, plastic additives, fillers, and unknown materials by analyzing their characteristic infrared absorption spectra. It is widely used for incoming material inspection, product verification, and polymer research.
Pharmaceutical Analysis
The instrument is ideal for raw material verification, excipient identification, drug formulation studies, impurity investigation, and quality control. High spectral sensitivity ensures reliable identification of pharmaceutical compounds while supporting regulatory laboratory requirements.
Chemical and Petrochemical Research
The TS-530A performs qualitative analysis of organic and inorganic compounds, reaction monitoring, catalyst studies, and chemical composition analysis. Its high stability ensures dependable results for both research and industrial laboratories.
Environmental Testing
The spectrometer is suitable for identifying environmental contaminants, organic pollutants, airborne particles, and hazardous substances. Multiple sampling accessories allow flexible analysis of solids, liquids, powders, and gases.
Academic and Scientific Research
Universities and research institutions use the TS-530A for molecular structure analysis, material science, nanotechnology, forensic investigations, and advanced spectroscopy research. The expandable accessory platform enables diverse analytical experiments while supporting future laboratory requirements.
