Electronic Axis Deviation Tester

Axis Deviation Testing for Glass & Plastic Bottles

Electronic Axis Deviation Tester1 / 2

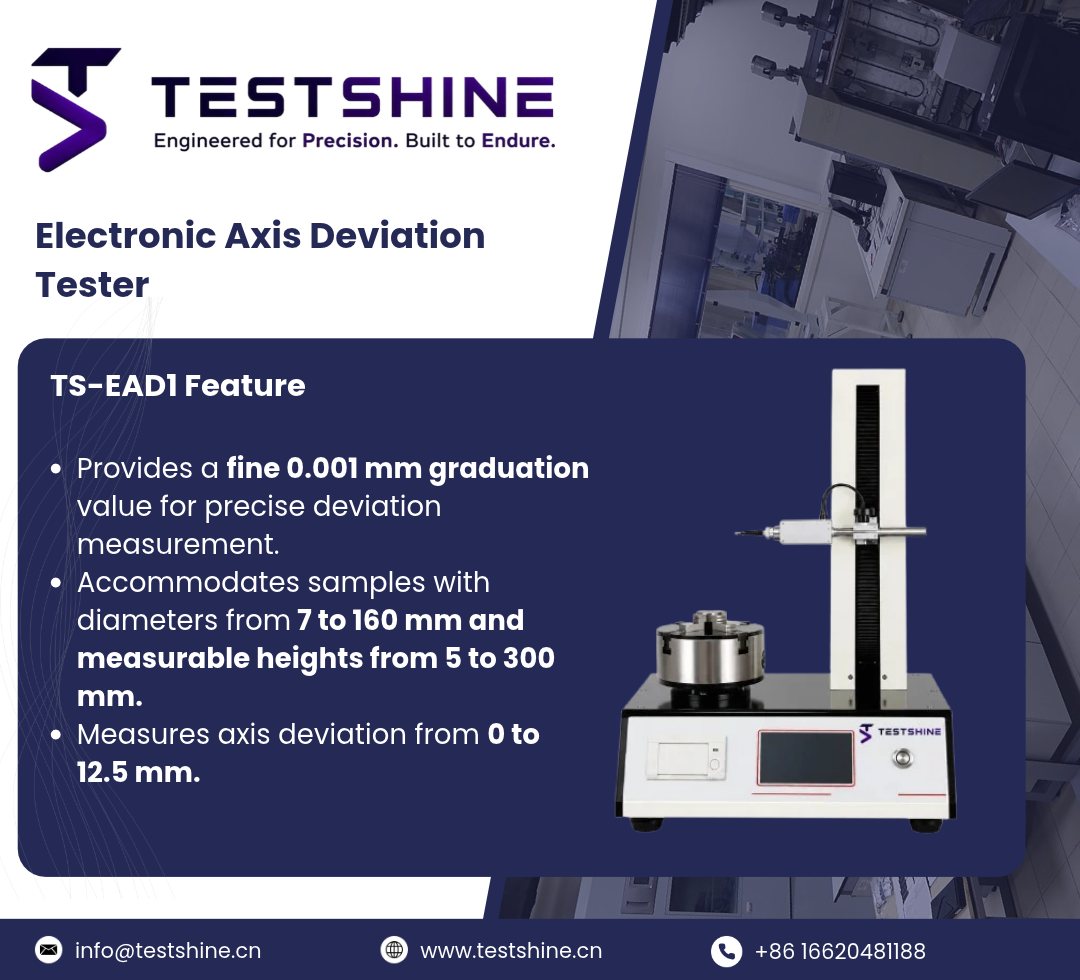

TS-EAD1

Electronic Axis Deviation Tester

The TS-EAD1 Electronic Axis Deviation Tester accurately determines the vertical deviation of glass bottles, container bottles, wine bottles, oral liquid bottles, and plastic bottles with dual measurement modes and high-resolution digital measurement.

Key Specifications

Sample Diameter

7~160 mm

Instrument Range

0~12.5 mm

Resolution

0.001 mm

Measurable Height

5~300 mm

Glass BottlesPlastic BottlesAxis DeviationCircle Run-Out Testing
Request a QuoteRequest Sample Testing

Global Shipping

50+ countries

2-Year Warranty

Parts & service

Expert Support

Dedicated team

Have a question about this instrument?

Talk to an expert

Product Information

The TS-EAD1 Electronic Axis Deviation Tester is designed to determine the vertical deviation of glass bottles, container bottles, wine bottles, oral liquid bottles and plastic bottles.

Key Features

  • Two measuring modes, circle run-out mode and axis deviation mode, which can be switched freely as required.

  • The measuring head rises and lowers automatically, and the position of the measuring point can be adjusted for convenient, practical operation.

  • A large color liquid crystal display shows the test results, including each individual measurement value and the statistical values.

  • Clear, intuitive touch screen control for easy operation.

Technical Parameters

ParameterSpecification
Sample diameter7-160mm
Instrument range0-12.5mm
Graduation value0.001mm
Measurable height5mm-300mm
Probe lifting modeElectric
Outline size436mm×320mm×690mm(L*W*H)
Weight40kg
Working temperature15℃-50℃
Relative humidityUp to 80% without condensation
Power220V 50Hz

Applications

  • Glass Bottles: Determination of vertical deviation of glass bottles.

  • Container Bottles: Evaluation of vertical deviation of container bottles.

  • Wine Bottles: Measurement of vertical deviation of wine bottles.

  • Plastic Bottles: Determination of vertical deviation of plastic bottles.
