Color Haze Meter
Color, Haze & Light Transmittance Measurement
1 / 2Color Haze Meter

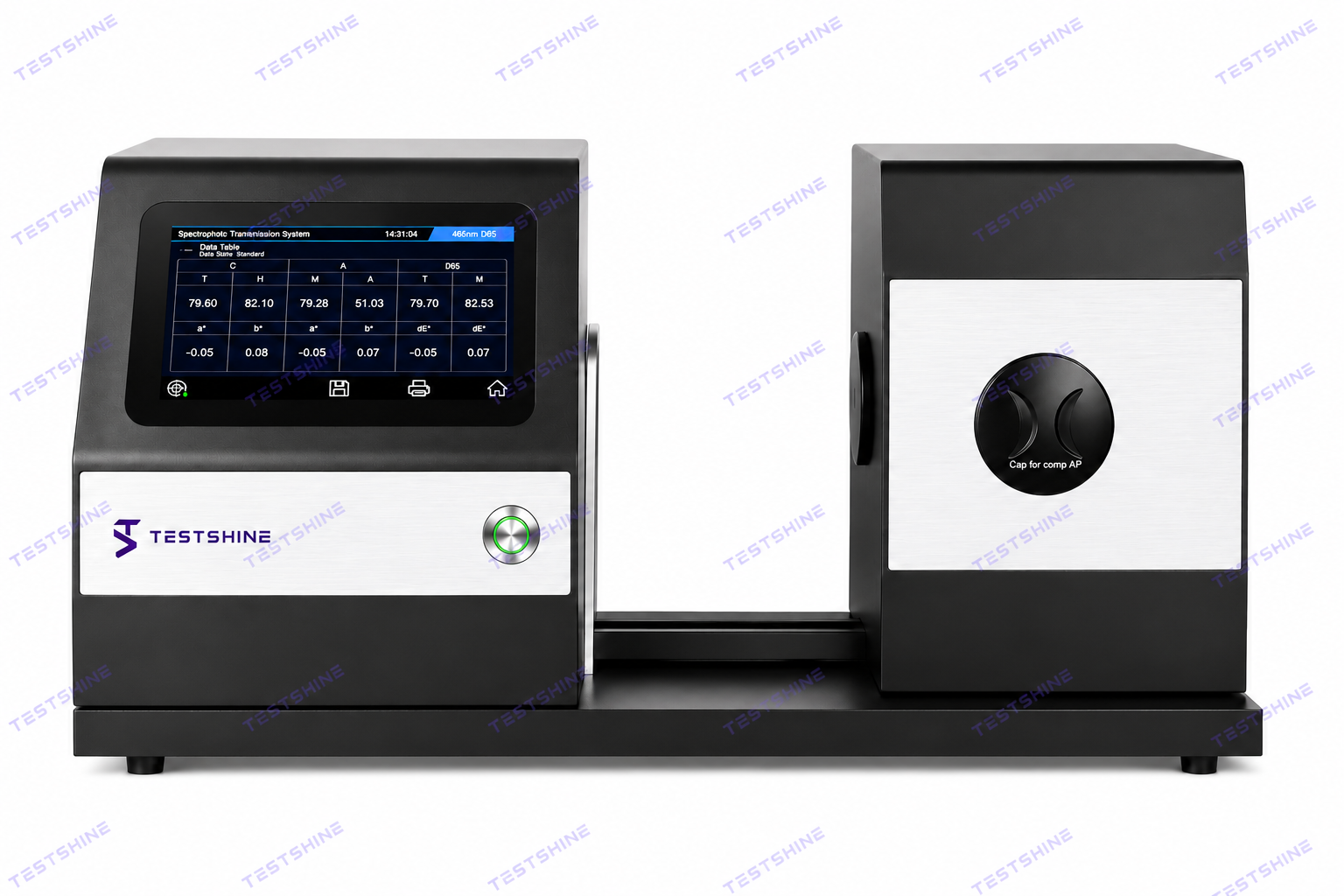

The TS-CH1610 Color Haze Meter is a high-precision optical testing instrument designed to measure light transmittance, haze, and color of transparent and translucent materials. It supports ASTM D1003 non-compensation and ISO 13468 compensation methods, making it suitable for glass, plastics, films, displays, packaging, and other optical materials.
Key Specifications
Test Parameters
Color, Haze & Transmittance
Measurement Range
0 – 100%
Measurement Time
About 1.5 s
Measuring Aperture
Φ20 / Φ15 / Φ8 / Φ4 mm
Global Shipping
50+ countries
2-Year Warranty
Parts & service
Expert Support
Dedicated team
Have a question about this instrument?
Talk to an expertProduct Introduction
The TS-CH1610 Color Haze Meter is engineered to deliver comprehensive optical testing in a single, streamlined platform, supporting the ASTM D1003 non-compensation method and the ISO 13468 compensation method for full light transmittance and haze evaluation. Built around a high-precision concave grating and a 256-pixel CMOS detector array, the instrument captures the complete transmittance curve of each sample and derives detailed chromaticity data with excellent accuracy. This design enables highly precise, repeatable measurement of transmittance, haze, and color across a broad range of transparent and translucent materials.
Key Features
- Dual-Standard Compliance (ISO & ASTM): The instrument supports both ISO and ASTM testing protocols within a single unit, satisfying the compliance needs of laboratories operating under ASTM D1003/1044, ISO 13468, ISO 14782, GB/T 2410, JJF 1303-2011, CIE 15.2, GB/T 3978, ASTM E308, JIS K7105, JIS K7361, and JIS K 7136.
- Multiple Observation Light Sources: A wide selection of color spaces — CIE LAB, XYZ, Yxy, LCh, s-RGB, and βxy — is available alongside numerous standard illuminants, including D65, A, C, D50, D55, D75, F1–F12, CWF, DLF, TL83, TL84, TPL5, and U30, allowing the instrument to adapt to specialized measurement conditions across industries.
- Intuitive Operation with Fast, Accurate Results: A large touchscreen interface simplifies day-to-day operation, while the 256-pixel dual-array CMOS image sensor ensures high-accuracy, repeatable transmittance and haze readings. A USB data output port allows seamless integration with laboratory information systems.
Technical Parameters
| Product Model | TS-CH1610 Color Haze Meter |
| Geometry | Transmittance: 0/D (parallel illumination, diffuse receiving); Conform to the standards: ASTM D1003/1044, ISO 13468，ISO 14782，GB/T 2410, JJF 1303-2011，CIE 15.2，GB/T 3978, ASTM E308，JIS K7105，JIS K7361，JIS K 7136 |
| Characteristic | The instrument can easily realize ASTM D1003 non-compensated method, ISO 13468 compensation method, Full transmittance, haze test. The instrument can accurately collect the transmittance curve of the transmitted sample, and can accurately output various chroma data of the transmitted sample. High hardware configuration, open measurement area, vertical, horizontal testing. It is widely used in glass processing, plastic processing, film, display screen processing, packaging industry, liquid analysis and other aspects. |
| Integrating Sphere Size | Φ 154 mm |
| Light Source | 400 ~ 700 nm combined LED light source (wavelength extended is customized) |
| Spectrophotometric Mode | Concave grating |
| Sensor | 256 pixel dual array CMOS image sensor |
| Wavelength Range | 400 ~ 700 nm (wavelength scalable customization) |
| Wavelength Interval | 10 nm |
| Half Bandwidth | 10 nm |
| Measurement Range | 0-100% |
| Measuring Aperture | Φ20 mm/Φ15 mm/Φ8 mm/Φ4 mm (select single aperture) |
| Sample Size | Thickness less than 105 mm |
| Color Space | CIE LAB,XYZ,Yxy,LCh,s-RGB,βxy |
| Chromatic Formula | ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00 |
| Other Chromaticity Index | Haze (ASTM D1003/1044, ISO 13468), Transmittance T (ISO), Transmittance T (ASTM), WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), Absorbance, Cobalt Platinum Index, Gardner Index |
| Observer Angle | 2 °/10 ° |
| Light Source | D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30 |
| Display Data | Spectrogram, sample chroma value, color difference/graph, color graph, color simulation, pass/fail result |
| Measurement Time | About 1.5s |
| Resolution | 0.01 unit |
| Repeatability | Φ20 mm aperture, less than 0.05(after instrument preheating and correction, test the standard nebulizer with the nebulization of about 30 at an interval of 5s for 30 times of standard deviation) |
| Inter-instrument Error | Φ20 mm aperture, less than 0.4 (after instrument preheating and correction, test the standard deviation between the standard nebulizer of nebulization and the reference value at an interval of 5s) |
| Dimensions | Length X Width X Height = 487X260X298mm |
| Weight | Approx. 8.0 kg |
| Power Supply | 24V 3A , DCpower adapter |
| Illuminant Life Span | > 3 million measurements in 5 years |
| Display | TFT True Color 7 inch, Capacitive Touchscreen |
| Interface | USB, Print Serial, Bluetooth |
| Data Storage | 5,000 samples, 20,000 samples |
| Language | Simplified Chinese, Traditional Chinese, English |
| Operating Temperature | 0 to 40 ° C (32 to 104 ° F) |
| Storage Temperature | - 20 – 50 ° C (-4 – 122 ° F) |
| Standard Accessories | Power adapter, user manual, quality management software (download), USB cable, 0% calibration box, measuring aperture |
| Optional Accessories | Micro printer, Test Fixture, Standard haze sheet, Footswitch |
| Notes | Subject to change without notice |
