Haze Meter
Haze & Light Transmittance Measurement
1 / 2Haze Meter

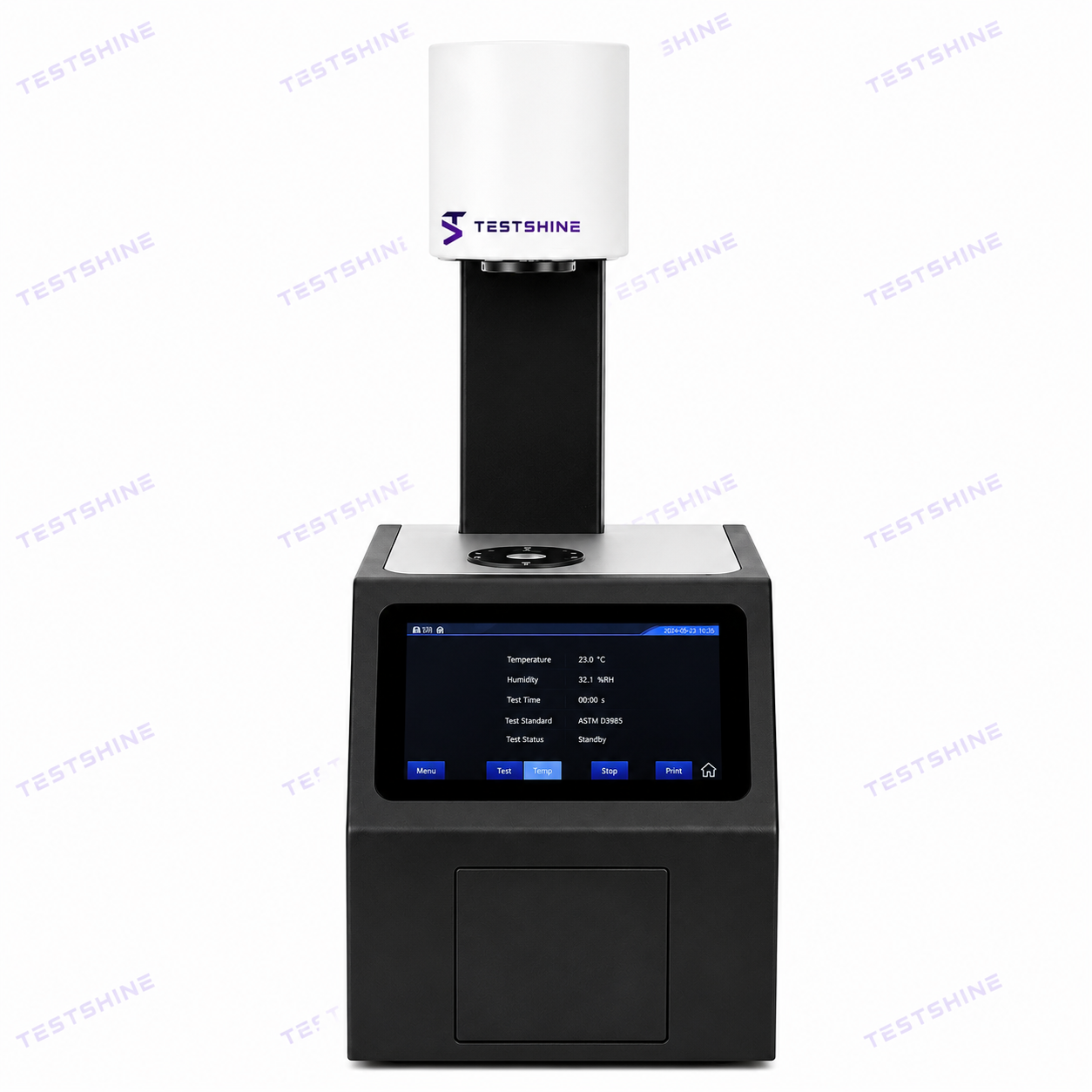

The TS-HM1200 Haze Meter is a high-precision optical instrument designed to measure haze and total light transmittance of transparent and translucent materials, including glass, plastics, films, packaging, and display materials.
Key Specifications
Test Parameters
Haze & Transmittance
Test Range
0 – 100%
Measurement Time
About 1.5 s
Test Aperture
Φ20 / Φ15 / Φ8 / Φ4 mm
Global Shipping
50+ countries
2-Year Warranty
Parts & service
Expert Support
Dedicated team
Have a question about this instrument?
Talk to an expertProduct Introduction
The TS-HM1200 Haze Meter provides accurate measurement of full light transmittance and haze, supporting both the ASTM D1003 non-compensation method and the ISO 13468 compensation method within a single instrument. Its open sample chamber allows specimens to be positioned either vertically or horizontally, extending compatibility to a wider variety of sample types. A PD array detector calibrated to the CIE V(λ) 2° visual response underpins the instrument's high-precision, repeatable readings, particularly when the compensation method is applied.
Technical Advantages
-
Dual Standard Compliance — ISO & ASTM
Built to meet the testing requirements of diverse laboratory environments, the instrument conforms to ASTM D1003/1044, ISO 13468, ISO 14782, GB/T 2410, JJF 1303-2011, CIE 15.2, JIS K7105, JIS K7361, and JIS K7136. -
Simple Operation with Fast, Accurate Results
A large touch-screen display streamlines everyday operation. Combined with a PD array detector that satisfies the CIE V(λ) 2° visual response, the instrument delivers highly precise and repeatable transmittance and haze measurements. A USB data output port enables direct integration with laboratory information systems. -
Dynamic Measurement Monitoring
An independent light source detector and temperature sensor continuously monitor variations in illumination and ambient conditions, helping to safeguard the reliability of every test result.
Technical Parameters
| Product Model | TS-HM1200 Haze Meter |
| Optical Geometry | Transmittance：0/D (Parallel light illumination, diffuse viewing); Conform to the standards: ASTM D1003/1044,ISO 13468,ISO 14782,GB/T 2410,JJF 1303-2011,CIE 15.2,JIS K7105，JIS K7361,JIS K 7136 |
| Characteristic | The instrument can easily achieve ASTM D1003 non-compensation method, full light transmittance,haze test. Open measuring area for vertical and horizontal testing. In glass processing, plastic processing, film, screen processing, packaging and other industries are widely used in transmittance,haze detection. |
| Integrating Sphere Size | Φ154mm |
| Light Source | 400nm to 700nm, combined LED light |
| Spectrophotometric Mode | / |
| Sensor | The PD array detector satisfies CIE V(λ)2 degree visual response |
| Wavelength Range | / |
| Wavelength Interval | / |
| Semiband Width | / |
| Measurement Range | 0~100% |
| Measuring Aperture | Φ20mm/Φ15mm/Φ8mm/Φ4mm(Select a single aperture) |
| Sample Size | Thickness ＜170mm |
| Color Space | / |
| Color Difference Formula | / |
| Other Colorimetric Index | Haze(ASTM D1003/1044,ISO13468),Transmittance T(ISO),Transmittance T(ASTM) |
| Observer Angle | 2° |
| Illuminant | D65,A,C |
| Displayed Data | PASS/FAIL Result |
| Measuring Time | About1.5s |
| Resolution | 0.01unit |
| Repeatability | Φ20mm,within 0.05 (After preheating and calibration of the instrument, standard deviation values of standard haze tablets with a test haze of about 30 for 30 times were taken at intervals of 5s.) |
| Inter-instrument Error | Φ20mm,with 0.4 (After the instrument is preheated and calibrated, the standard deviation between the standard haze tablet and the reference value is tested at an interval of 5s.) |
| Dimension | L*W*H=290X211X511mm |
| Weight | About7.6kg |
| Power | AC 24V, 3A Power adapter power supply |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 7-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB, Print serial port |
| Data Storage | Standard 1000 pcs,sample 20000 pcs |
| Language | Simplified Chinese,Traditional Chinese,English |
| Operating Environment | 0~40℃（32~104°F） |
| Storage Environment | -20~50℃（-4~122°F） |
| Standard Accessory | Power Adapter, User Guide,Quality Management Software (download from the official website),USB cable,0% calibration box, measuring aperture. |
| Optional Accessory | Micro-printer,Test fixture, standard haze sheet, foot switch |
| Note | The specifications are subject to change without notice. |
