Vacuum Decay Leak Detection Tester
Vacuum Decay Leak Detection Tester for Packaging Integrity Testing
1 / 2Vacuum Decay Leak Detection Tester

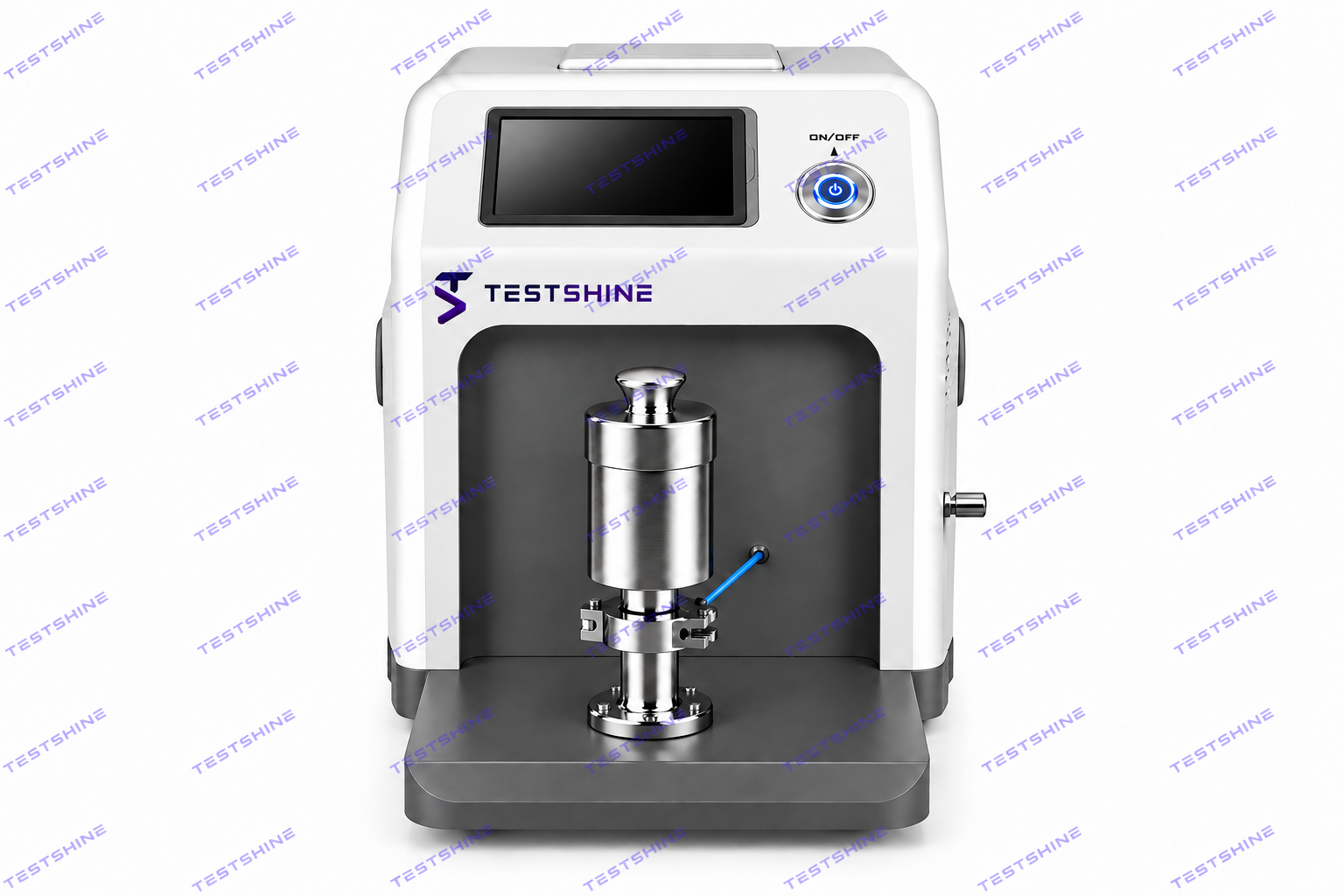

The TS-VDL1 Vacuum Decay Leak Detection Tester uses the vacuum decay principle to identify micro-leaks in finished packaging. It is a non-destructive testing solution suitable for pharmaceutical, food, and chemical packaging applications.
Key Specifications
Absolute Pressure Test Range
0–300 kPa
Differential Pressure Test Range
−2–2 kPa
Detection Sensitivity
1–2 μm
Test Time
1–3600 s
Global Shipping
50+ countries
2-Year Warranty
Parts & service
Expert Support
Dedicated team
Have a question about this instrument?
Talk to an expertProduct Information
The TS-VDL1 Vacuum Decay Leak Detection Tester is engineered on the principle of vacuum decay to identify micro-leaks in finished packaging. Suitable for both micro-leak detection and integrity testing across a wide range of packaging formats, the instrument is well suited to pharmaceutical, food, and chemical packaging applications, including vials, ampoules, HDPE bottles, and prefilled needles.
As a non-destructive testing solution, the TS-VDL1 requires no sample preparation, allowing tested packages to remain intact and fully usable after inspection.
Key Features
Dual-Sensor, Dual-Cycle Technology for Non-Destructive Testing
The TS-VDL1 combines dual-sensor and dual-circulation system technology, incorporating high-quality absolute pressure and differential pressure sensors with an accuracy of 0.1% FS. This configuration enables reliable detection of both large and small leaks, accurate calculation of leak hole diameter, and a clear pass/fail determination.
A non-destructive testing method is used to leak-test the finished package, and the sample remains undamaged after testing.
High Sensitivity and Reliable Repeatability
For rigid samples, the instrument achieves a detection sensitivity as fine as 2 μm, with excellent test repeatability. Stable instrument performance and low operating noise further support consistent, dependable results.
Premium Imported Components for Superior Performance
The tester is equipped with a branded vacuum pump offering a pumping speed of up to 4 m³/h and a noise level as low as 60 dB. Its high ultimate vacuum is complemented by a convenient oil-level indicator that simplifies monitoring and replacement.
Technical Parameters
| Parameter | Specification |
| Absolute pressure test range | (0~300) kPa |
| Differential pressure test range | (-2~2) kPa |
| Detection sensitivity | 1～2 μm |
| Balance/Test Time | 1～3600 s |
| Vacuum time | 1～3600 s |
| Set flow rate | 0～3 mL/min |
| Test system | Dual Sensor Technology / Dual Cycle Test |
| Test chamber | Customized according to samples |
| Suitable for | Vials, ampoules, prefilled needles, infusion bottles/bags, etc. |
| Detection principle | Vacuum decay method |
| Host size | 550 mm*330 mm*320 mm |
| Ambient temperature | 20℃~25℃ |
| Relative humidity | 40%~60% |
| Working power | AC 220V, 50HZ |
Applications
- Freeze-dried powder injection
- Injection
- Prefill needle
- Eye drops
- Plastic Ampoule BFS
- Infusion bags
