Tear Tester
Elmendorf Tear Tester for Paper, Films & Flexible Materials
1 / 2Tear Tester

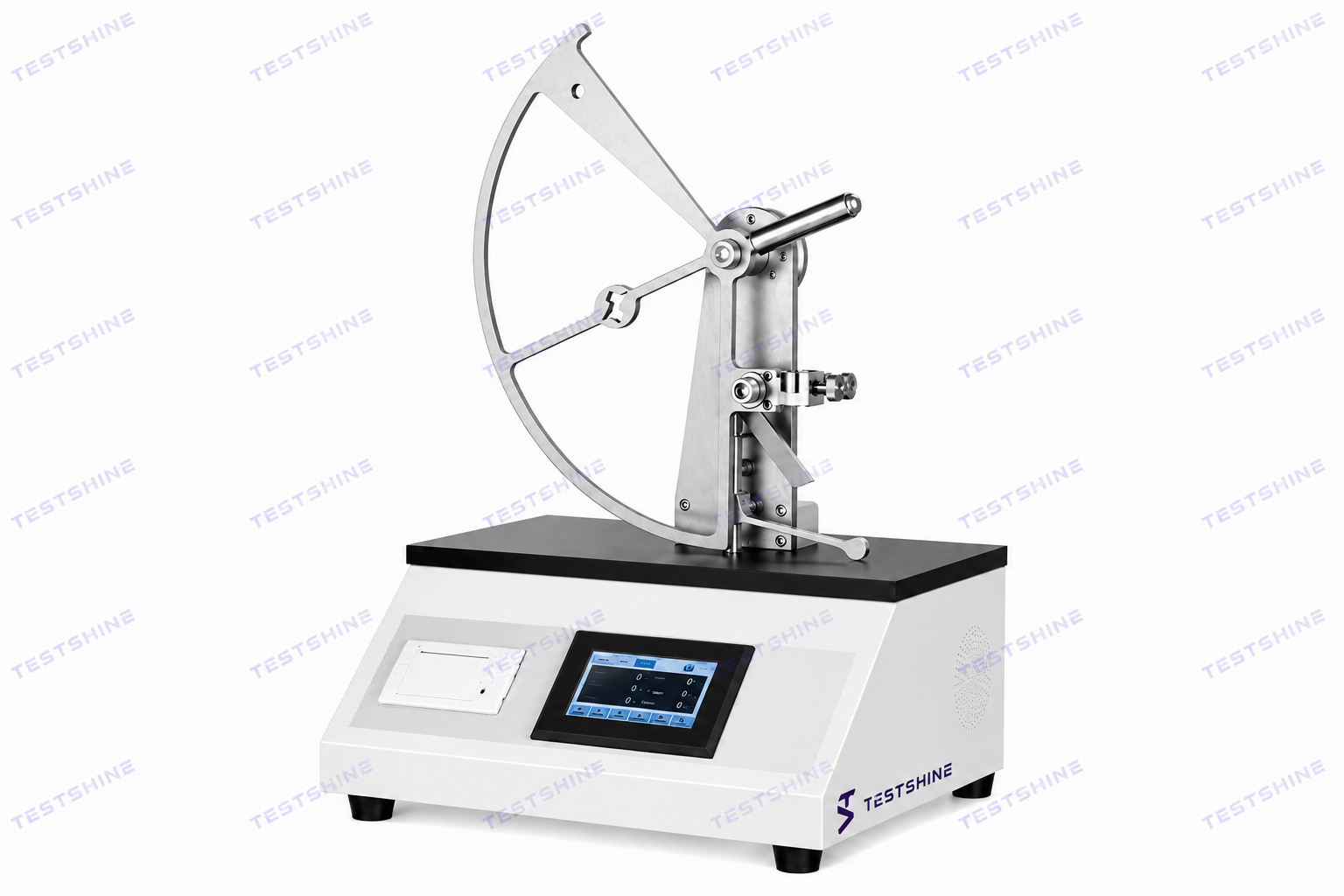

The TS-T2 Tear Tester is an Elmendorf-method testing instrument designed to accurately measure the tearing resistance of paper, films, and flexible materials. It supports fully automated computer-controlled testing as well as independent stand-alone operation, with built-in LCD display, automatic data processing, integrated report printing, and pneumatic sample clamping for consistent and repeatable testing.
Key Specifications
Test Range
0 – 68648 mN
Tearing Arm
104 ± 1 mm
Initial Tearing Angle
27.5˚ ± 0.5˚
Air Source Pressure
0.2 – 0.4 MPa
Global Shipping
50+ countries
2-Year Warranty
Parts & service
Expert Support
Dedicated team
Have a question about this instrument?
Talk to an expertProduct Introduction
The TS-T2 Tear Tester, based on the Elmendorf method, is engineered to accurately measure the tearing resistance of paper, film, and related flexible materials. The instrument supports fully automated, computer-controlled testing as well as independent stand-alone operation, providing flexibility across a range of laboratory workflows. It is well suited for evaluating the tear strength of plastic film, PVC, polyolefin, polyester, composite film, sheet materials, non-woven fabric, textile, paper, and board, among other substrates.
Key Features
- Built-in LCD screen provides real-time display of test data and operating status.
- Capable of independent testing without a connected computer, offering simple operation and automatic data processing.
- Integrated printer enables direct printing of test reports.
- Pneumatic clamping and release mechanism ensures consistent, repeatable sample handling.
Technical Parameters
| Item | Technical Parameters |
| Test Range | 0-68648mN |
| Tearing arm | 104±1mm |
| Initial tearing angle | 27.5˚ ±0.5˚ |
| Indication error | In the range of 20%-90% of the maximum value of the force scale, the indication error should not exceed ±0.5% of the maximum value of the range. |
| Air source pressure | 0.2~0.4MPa (Gas source to be prepared by the user) |
| Indication relative change value | within 1% |
| Test weight | 5 pieces (110g, 220g, 440g, 870g, 1730g) |
| Calibration weight | 6 pieces (110g, 220g, 440g, 870g, 1730g, 3470g) |
| Air source interface | Φ6mm Polyurethane tube |
| Dimensions | 430(L)mm×370(B)mm×600(H)mm |
| Power supply | AC 220V, 50Hz |
| Power | 100W |
| Weight | 20Kg |
