Heat Seal Tester
Multi-Station Heat Seal Testing Instrument
1 / 3Heat Seal Tester

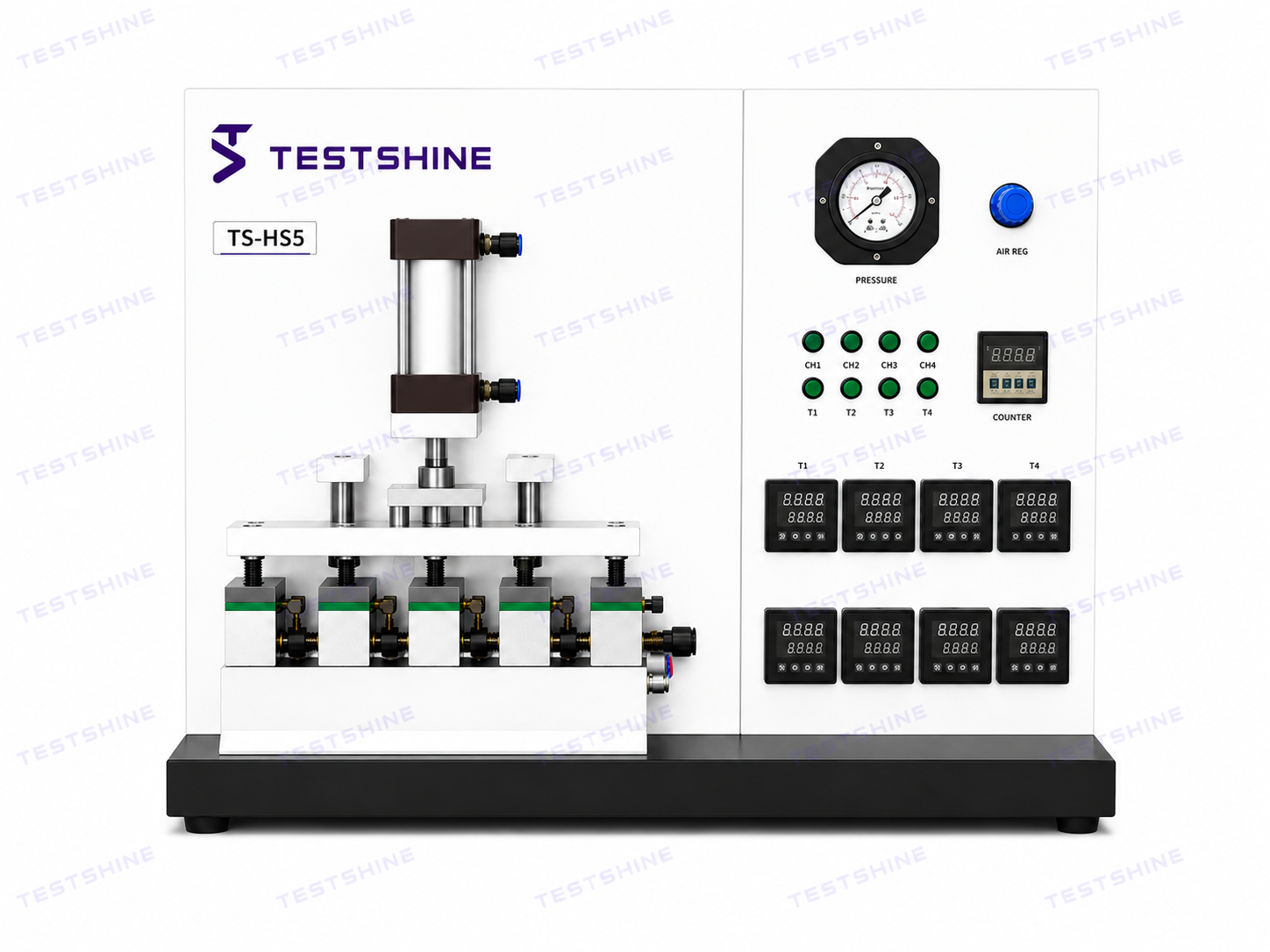

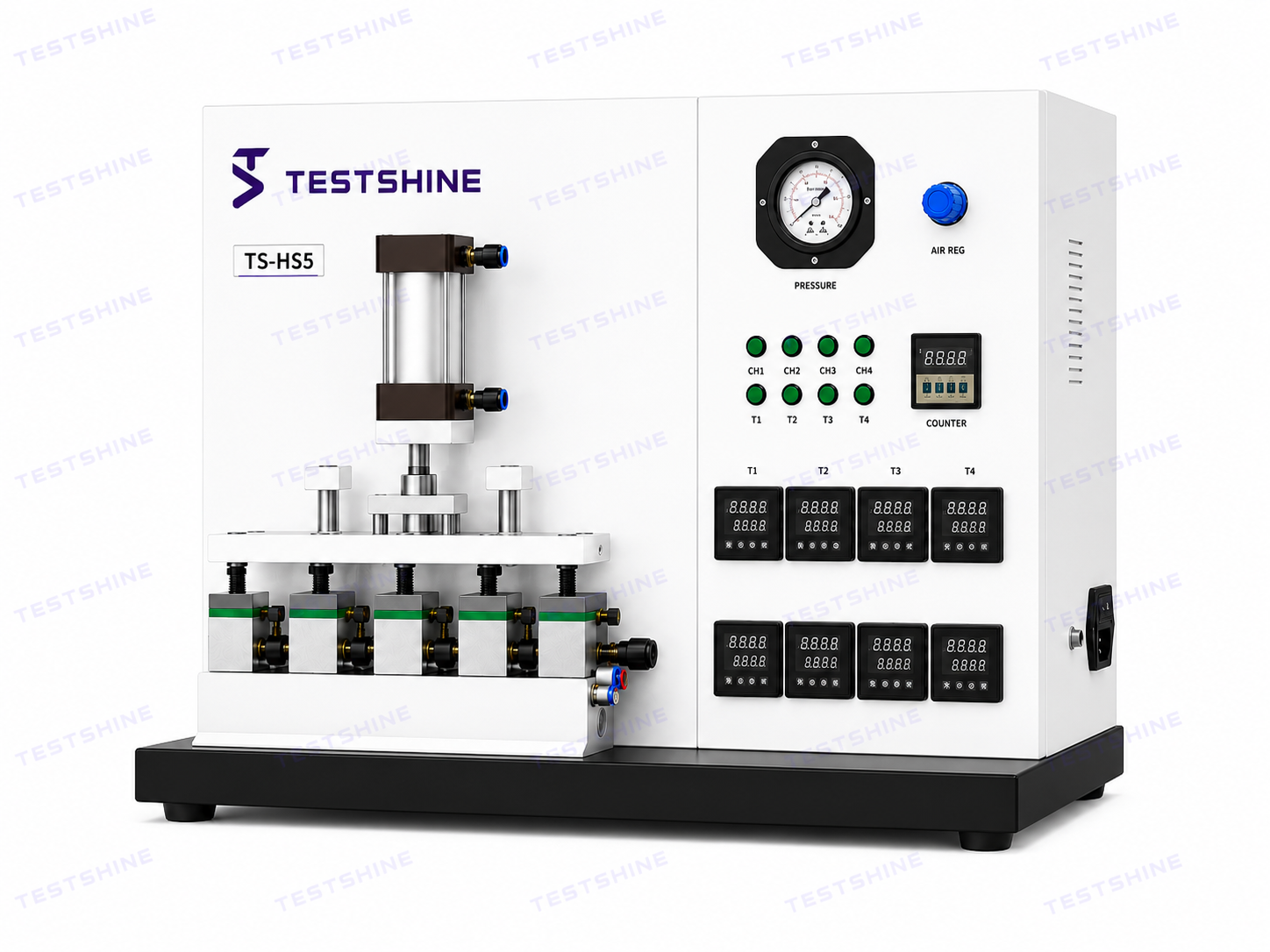

The TS-HS5 Heat Seal Tester accurately evaluates the heat sealing performance of flexible packaging materials by precisely controlling sealing temperature, pressure, and sealing time, enabling reliable seal optimization for research, quality control, and production applications.
Key Specifications
Temperature Range
RT – 250°C
Temperature Accuracy
±1°C
Pressure Range
0 – 1 MPa
Heating Zones
5 Independent Sections
Global Shipping
50+ countries
2-Year Warranty
Parts & service
Expert Support
Dedicated team
Have a question about this instrument?
Talk to an expertProduct Introduction
Heat sealing is one of the most common methods used to close flexible packaging, and its success depends on getting three variables right: temperature, pressure, and time. Even small deviations in any of these can compromise seal strength, allow leakage, or shorten shelf life. The TS-HS5 Heat Seal Tester was designed to take the guesswork out of this process, giving laboratories and production teams a reliable, repeatable way to determine the exact sealing parameters a given film or laminate requires before it goes into full-scale production.
In real production environments, sealing conditions are rarely uniform. Film thickness can vary slightly from roll to roll, ambient temperature and humidity shift throughout the day, and different film structures respond differently to the same heat and pressure. Without a dedicated instrument to isolate and control these variables, manufacturers are often left to rely on trial and error directly on the production line, which wastes material, slows down changeovers, and makes it harder to pinpoint the true cause of a failed seal. The TS-HS5 addresses this gap by recreating sealing conditions in a controlled, laboratory setting, so each variable can be adjusted and observed independently.
Key Features
- Five-point warmness sealing configuration, permitting 5 unbiased temperature settings to be programmed right away.
- Independent temperature control for the upper and lower warmth seal bars, every adjustable one after the other for precise, customized sealing consequences.
- Pneumatically driven design powered by using compressed air, ensuring stable and consistent sealing pressure.
Technical Parameters
| Temperature Range | Room temperature~250℃ |
| Temperature Precision | ±1℃ |
| Seal Time Range | 0.01s~99.99h |
| Pressure Range | 0~1Mpa |
| Heat Seal Area | Upper bar: 35×10mm × 5 sections, lower bar has silicone pad as buffer; (customize available) |
| Heat Seal Method | Two ways: automatic or manual, external air cylinder |
| Gas Source | compressed air |
| Power | 1300W |
| Power Supply | AC220V 50Hz |
| Weight | 55 kg |
| Instrument Size | 730mm × 400mm × 540mm |
Applications
Heat-Sealing Performance Testing
The TS-HS5 Heat Seal Tester is engineered to accurately measure and control the temperature, pressure, and dwell time required for heat-sealing a wide range of film materials. Built for both routine quality checks and detailed process validation, it delivers the consistency and repeatability that demanding testing environments require.
