Vertical Heat Seal Tester
Vertical Heat Seal Testing Instrument
1 / 3Vertical Heat Seal Tester

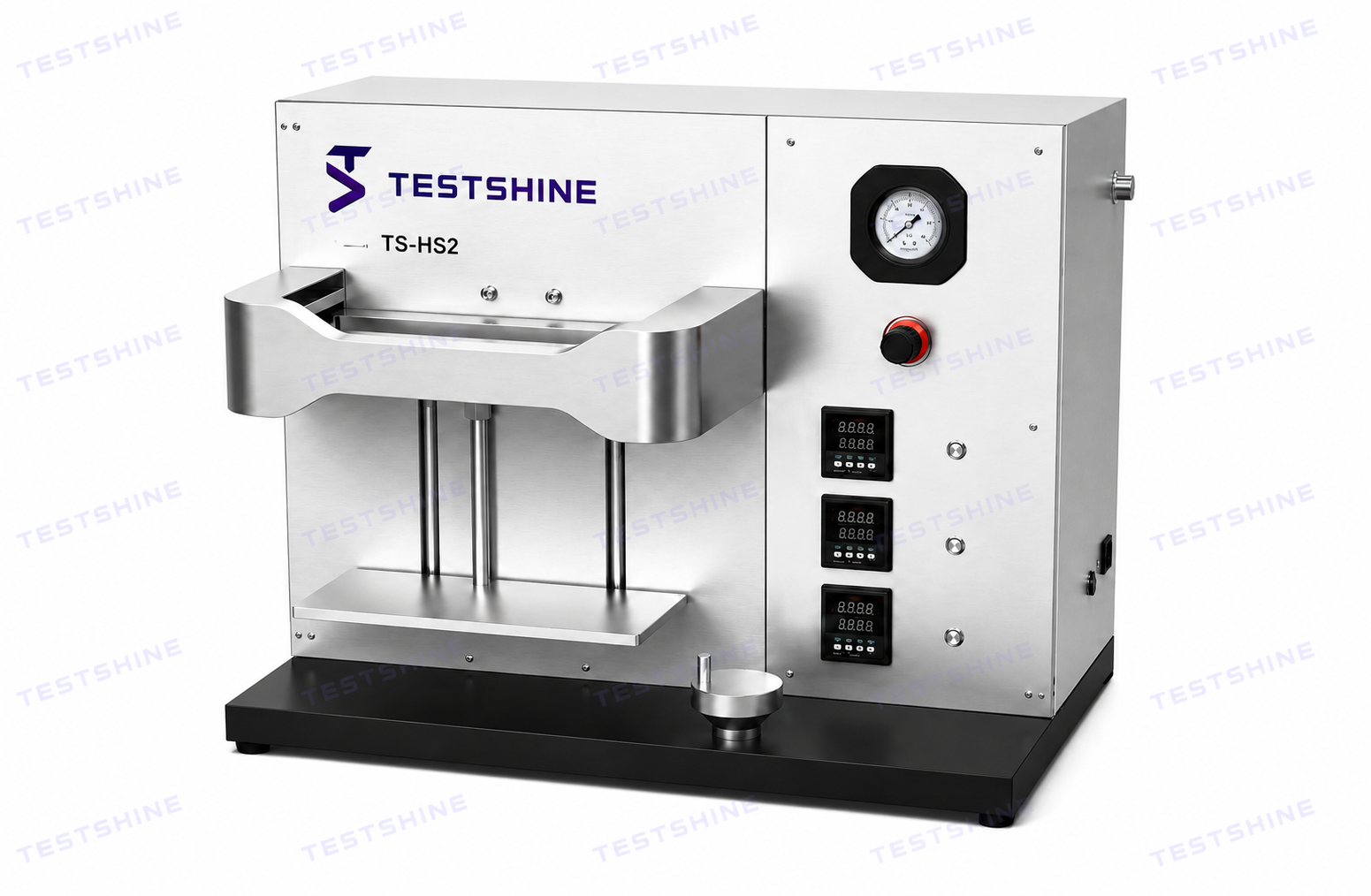

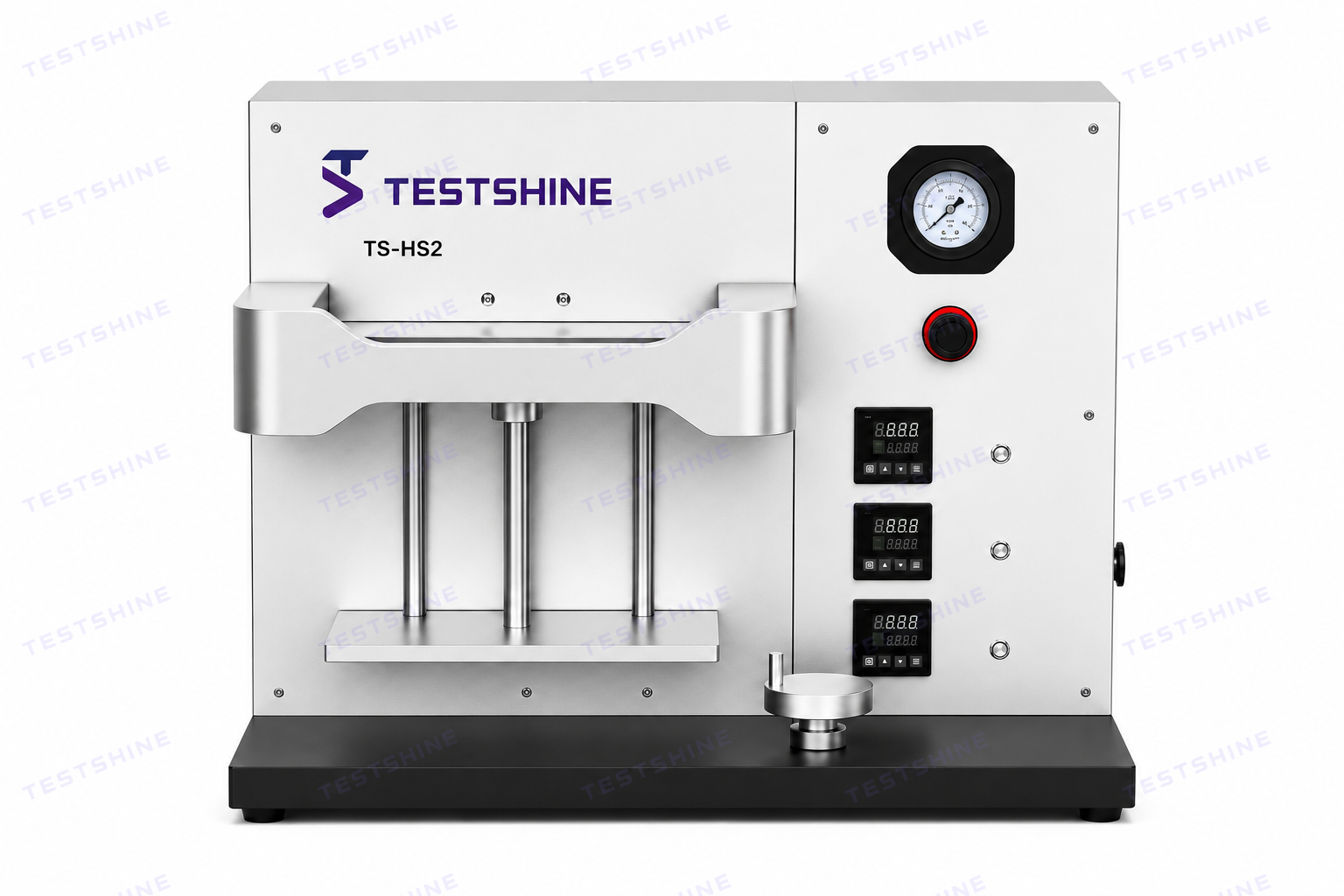

The TS-HS2 Vertical Heat Seal Tester accurately evaluates the heat sealing performance of flexible packaging materials by optimizing sealing temperature, pressure, and sealing time, ensuring reliable seal quality for research, quality control, and production applications.
Key Specifications
Temperature Range
RT – 250°C
Temperature Accuracy
±1°C
Pressure Range
0 – 1 MPa
Control Mode
Automatic & Manual
Global Shipping
50+ countries
2-Year Warranty
Parts & service
Expert Support
Dedicated team
Have a question about this instrument?
Talk to an expertProduct Introduction
The TS-HS2 Vertical Heat Seal Tester is a precision laboratory instrument designed to evaluate the heat-sealing characteristics of flexible packaging materials. It is engineered to accurately determine the sealing temperature, sealing time, sealing pressure, and related sealing performance parameters of plastic vertical pouches, paper-plastic composite vertical pouches, and metal-composite vertical pouches or cartons.
Because different packaging substrates respond differently to heat and pressure, sealing behaviour must be verified on a material-by-material basis. By systematically measuring these sealing parameters, the TS-HS2 enables quality and R&D teams to identify the optimal sealing conditions for each material, supporting consistent package integrity, reduced leakage risk, and improved production efficiency.
Key Features
- High-Precision Imported Sensor for Assured Quality. The TS-HS2 is fitted with an original imported temperature sensor offering a wide control range and high sensitivity. Temperature control accuracy reaches ±1°C, and the sensor delivers excellent long-term stability together with a very low failure rate, ensuring dependable, repeatable results test after test.
- Independent Sealing Temperature Control. A dedicated temperature sensor is mounted behind the heat-sealing knife. The inner and outer sealing knives are controlled independently, with their temperatures set and regulated separately, allowing precise tuning of the sealing profile for complex multi-layer materials.
- Flexible Manual and Automatic Test Modes. Operators can freely choose between manual and automatic testing. Automatic mode saves time and offers fully automated, repeatable heat-sealing cycles, ideal for high-throughput testing. Manual mode is operated via a foot switch — pressing the pedal engages the sealing knife — and includes safety protection features that make the instrument easy and safe to operate.
Technical Parameters
| Temperature Range | Room temperature to 250°C |
| Temperature Accuracy | ±1°C |
| Sealing Time Range | 0.1 s to 99.99 h |
| Pressure Range | 0–1 MPa |
| Heat-Sealing Area | Upper and lower sealing knife 300 × 5.5 mm, sliding lower bar |
| Heat-Sealing Mode | Two modes: automatic or manual; external air cylinder drive |
| Air Supply | Compressed air |
| Instrument Dimensions | 730 (L) mm × 400 (W) mm × 540 (H) mm |
| Weight | 34 kg |
| Power | 1200 W |
| Power Supply | AC 220 V, 50 Hz |
Applications
Plastic Stand-Up Pouch
The TS-HS2 is suitable for evaluating the heat-sealing performance of plastic stand-up pouches, helping determine the optimum sealing temperature, pressure, and sealing time for reliable package integrity.
Paper-Plastic Stand-Up Pouch
The instrument is designed for heat-sealing performance testing of paper-plastic composite stand-up pouches, supporting process optimization and quality control.
Aluminized Stand-Up Pouch
The TS-HS2 evaluates the sealing characteristics of aluminized stand-up pouches, ensuring consistent sealing performance for multilayer packaging materials.
Milk Cartons
The instrument is suitable for heat-sealing performance evaluation of milk cartons and similar packaging formats, supporting product development, quality assurance, and production process validation.
