Heat Seal Tester
Heat Seal Testing Instrument
1 / 4Heat Seal Tester
The TS-HS1 Heat Seal Tester accurately evaluates the heat sealing performance of flexible packaging materials by optimizing sealing temperature, pressure, and dwell time to ensure consistent, reliable seal quality.
Key Specifications
Temperature Range
RT – 250°C
Pressure Range
0 – 1 MPa
Seal Area
300 × 10 mm
Operating Mode
Automatic & Manual
Global Shipping
50+ countries
2-Year Warranty
Parts & service
Expert Support
Dedicated team
Have a question about this instrument?
Talk to an expertProduct Introduction

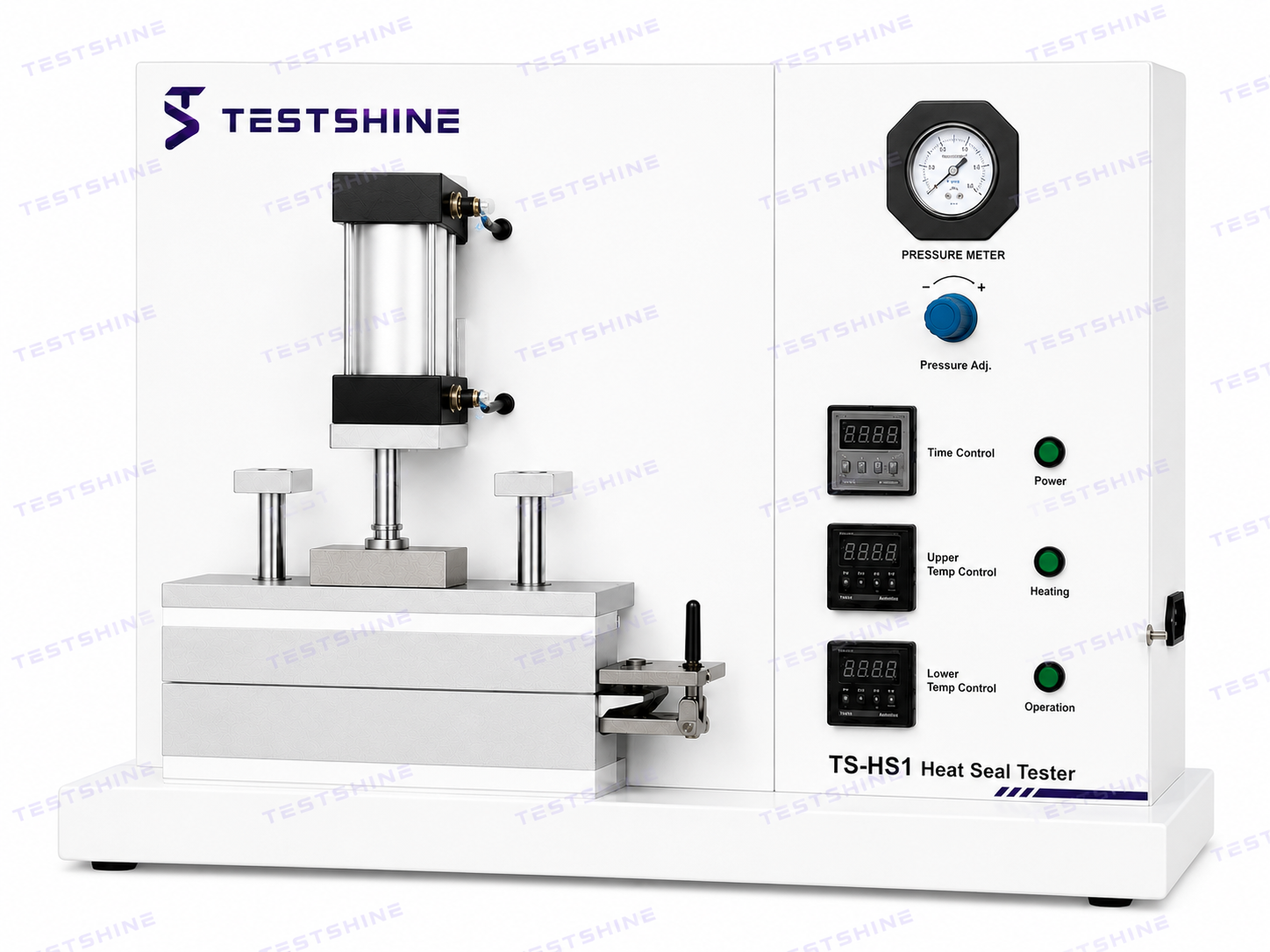

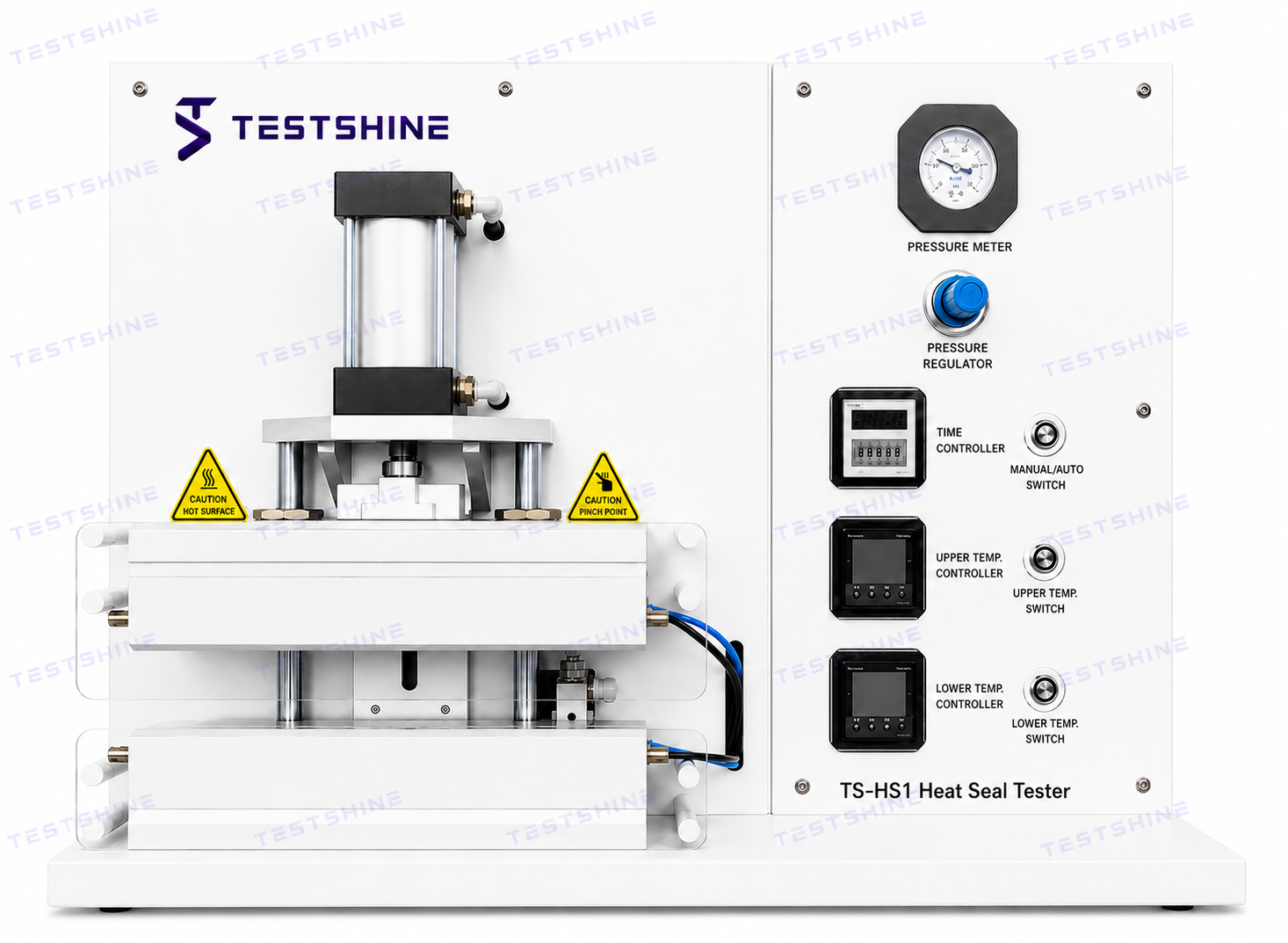

The TS-HS1 Heat Seal Tester is a precision instrument engineered to accurately measure the heat seal temperature range, seal strength, optimum sealing speed, and sealing pressure of plastic film, flexible packaging composite film, coated paper, aluminum foil, and other packaging substrates. Built for reliability and repeatability, it has become an essential quality control tool across the plastic film, food, and pharmaceutical manufacturing sectors, and is equally valued by testing institutions and academic laboratories for scientific research and teaching applications.
Key Features

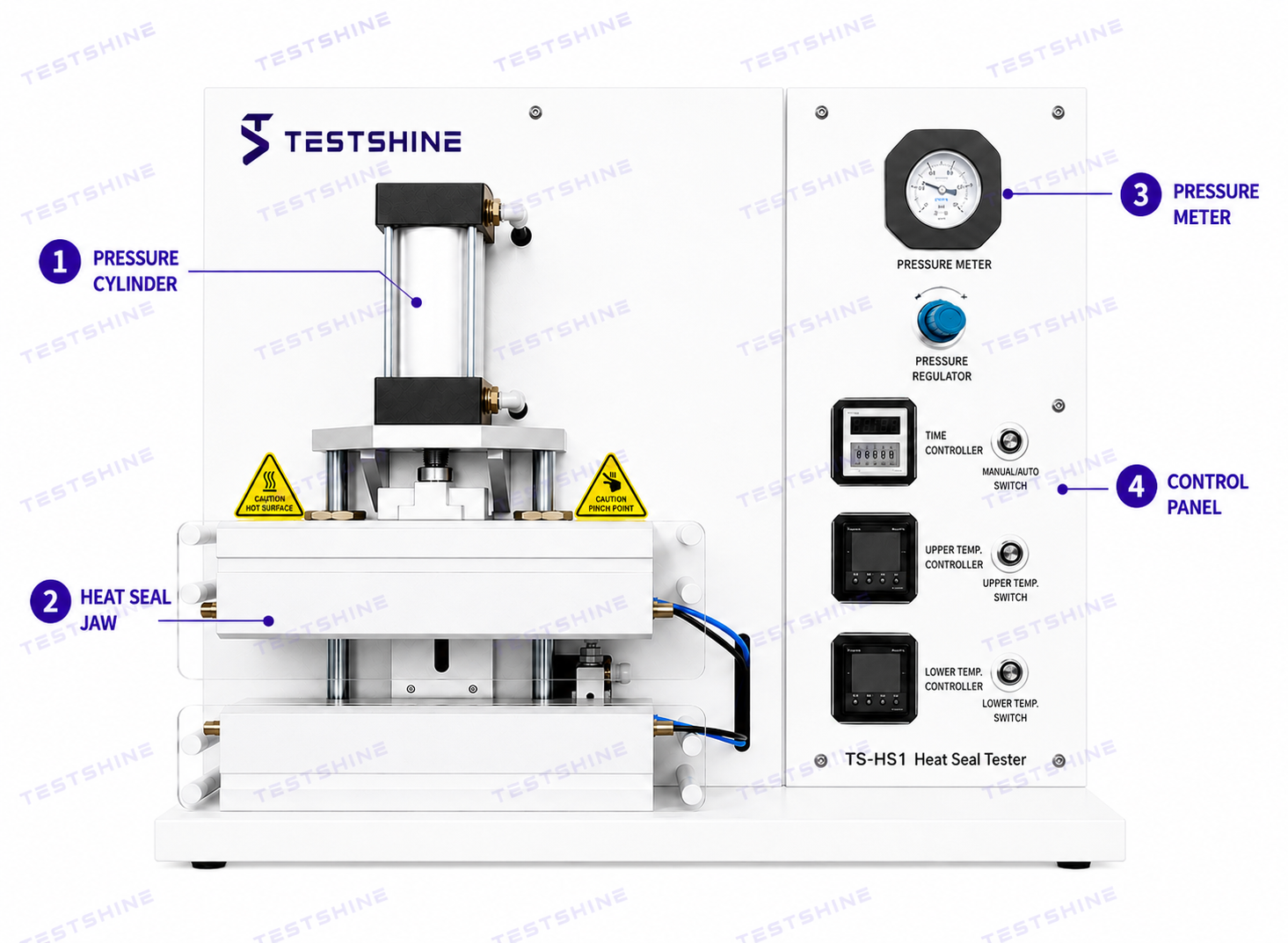

- Independent temperature control for the upper and lower heat seal jaws, allowing each to be set separately for precise process tuning.
- Pneumatically driven using compressed air for consistent, repeatable sealing pressure.
- Dual operating modes — automatic and manual — with a foot switch provided for convenient manual operation.
Technical Parameters
| Temperature Range | Room temperature ~ 250℃ |
| Temperature Precision | ±1℃ |
| Seal Time Range | 0.01s ~ 99.99h |
| Pressure Range | 0 ~ 1 Mpa |
| Heat Seal Area | Upper and lower bar: 300mm × 10mm, smooth surface (lower bar fitted with silicone pad as buffer) |
| Heat Seal Method | Two operating modes — automatic or manual — driven by external air cylinder |
| Gas Source | Compressed air |
| Power | 1200W |
| Power Supply | AC220V 50Hz |
| Weight | 35 kg |
| Instrument Size | 730mm × 400mm × 540mm |
Applications
Process Development and Validation
Process development and validation for flexible packaging films, laminates, and composite structures prior to production scale-up.
Incoming Material Inspection
Routine incoming material inspection for film, foil, and coated paper suppliers to confirm sealing performance meets specification.
Quality Assurance Testing
Quality assurance testing in food, beverage, pharmaceutical, and medical device packaging lines to safeguard product shelf life and package integrity.
