Film Heat Shrinkage Tester
Advanced Film Heat Shrinkage Testing Instrument
1 / 2Film Heat Shrinkage Tester
The TS-FHS1 Film Heat Shrinkage Tester accurately evaluates the heat shrinkage behavior of plastic films using an air-heating method, measuring thermal shrinkage force, cold shrinkage force, shrinkage rate, shrinkage time, and other key performance parameters for reliable packaging quality control and material development.
Key Specifications
Working Temperature
RT – 250°C
Temperature Accuracy
±0.5°C
Shrinkage Measurement Range
0.1% – 95%
Displacement Measurement Range
0.1 – 70 mm
Global Shipping
50+ countries
2-Year Warranty
Parts & service
Expert Support
Dedicated team
Have a question about this instrument?
Talk to an expertProduct Information

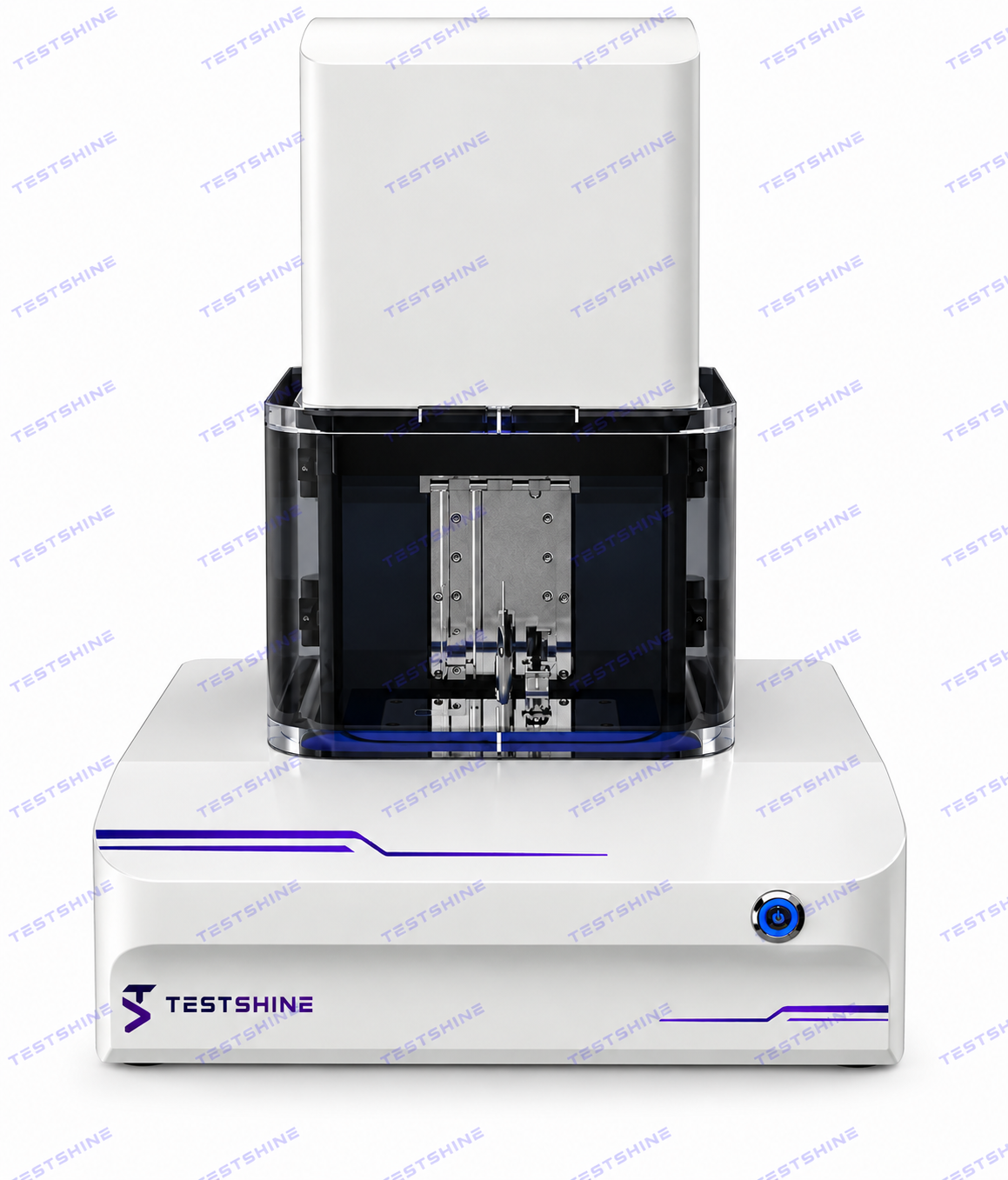

The Film Heat Shrinkage Tester TS-FHS1 evaluates the heat shrinkage behavior of plastic films using the air-heating (air bath) method. It is designed for heat-shrinkable films manufactured from polyethylene, ethylene copolymers, and their blends, and is widely applicable to beverage labels, bottle bundling packaging, sausage casing packaging, outer films for daily chemical products, and cigarette box overwraps, among other uses.
The instrument delivers accurate, quantitative measurement of thermal shrinkage force, cold shrinkage force, shrinkage rate, shrinkage time, and other related properties exhibited by plastic films during the heat-shrinking process.
Because the test generates multiple categories of data, it enables a multi-dimensional assessment of film shrinkage performance. This supports the development of heat-shrinkable films across different materials, helps ensure consistent performance of heat-shrinkable films from batch to batch, and addresses the varied testing requirements of heat-shrinkable film applications across industries.
Conventional oven- or oil-bath-based equipment typically measures only the heat shrinkage rate, which limits the scope of the results obtained. By contrast, the TS-FHS1 assesses film thermal shrinkage performance through a broader set of data outputs. The instrument is straightforward to operate and environmentally friendly, and it delivers high measurement accuracy together with more comprehensive test results.
Key Features
- Laser measurement technology enables non-contact, precise measurement.
- A high-precision force sensor and displacement sensor accurately determine the thermal shrinkage performance parameters of the sample.
- Automatic temperature control is achieved through an intelligent digital PID algorithm.
- The system displays heat shrinkage force, cold shrinkage force, and heat shrinkage rate in real time during testing.
Technical Parameters
| Parameter | Specification |
| Sensor Specifications | 5 N (standard); 10 N, 30 N (optional) |
| Contraction Force Accuracy | Display value ±0.5% (10%–100% of sensor specification); ±0.05%FS (0%–10% of sensor specification) |
| Display Resolution | 0.00196 N |
| Displacement Measurement Range | 0.1–70 mm |
| Displacement Sensor Accuracy | ±0.07 mm |
| Shrinkage Measurement Range | 0.1%–95% |
| Working Temperature | Room temperature–250℃ |
| Temperature Fluctuation | ±0.2℃ |
| Temperature Accuracy | ±0.5℃ (single point calibration) |
| Number of Workstations | 1 set (two stations) |
| Sample Size | 110 mm × 15 mm (standard size) |
| Dimensions | 480 mm (L) × 400 mm (W) × 630 mm (H) |
| Power Supply | 220VAC±10% 50Hz / 120VAC±10% 60Hz |
| Net Weight | 26 kg |
| Power | 800 W |
Applications
The TS-FHS1 is suitable for testing a wide range of heat-shrinkable film materials, including:
- Beverage film packaging
- Sausage shrink wrap
- Film packaging
- Daily chemical film packaging
