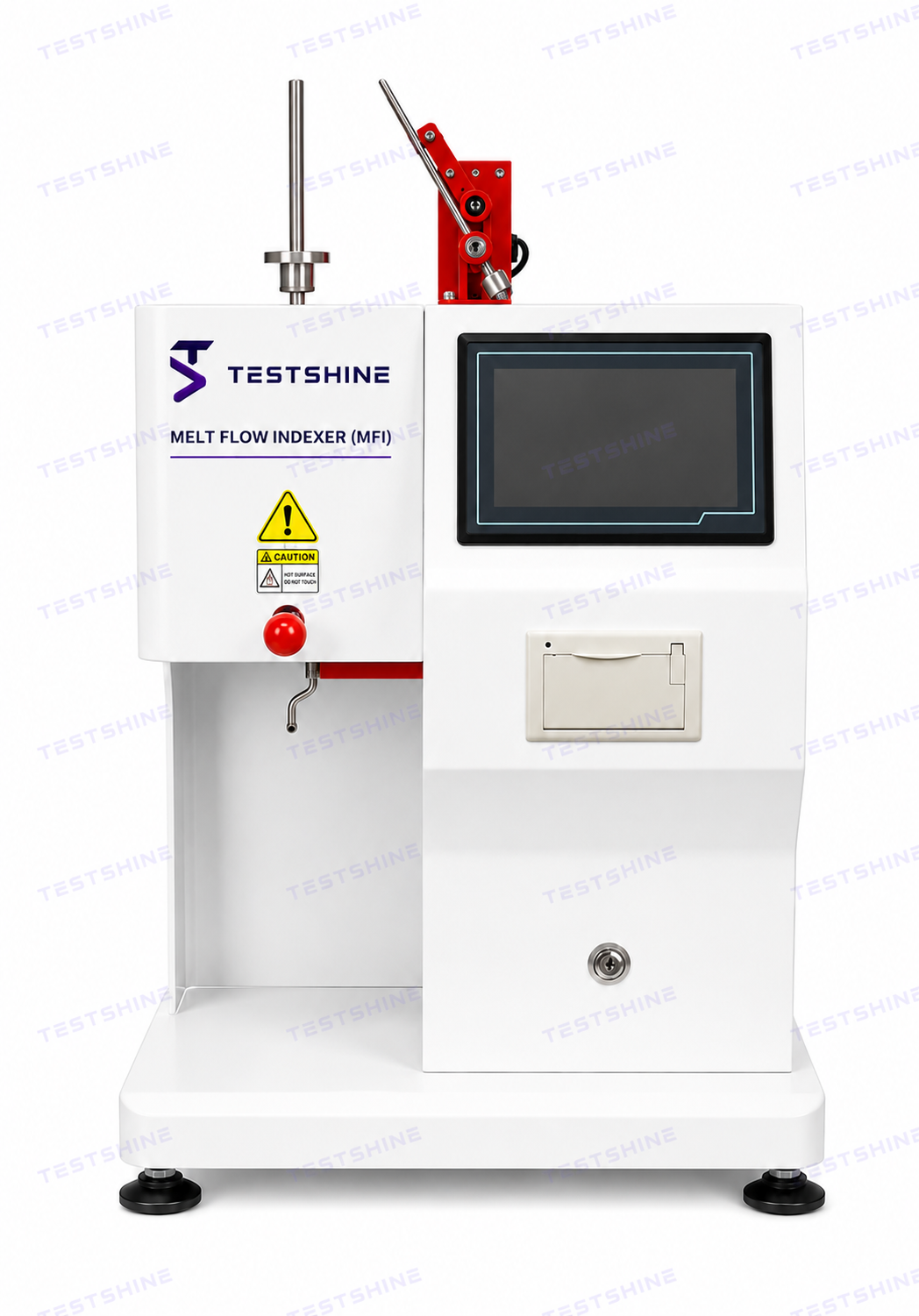

Melt Flow Indexer
Melt Flow Rate (MFR) Testing Instrument
1 / 2Melt Flow Indexer
The TS-MI-CPV Melt Flow Indexer accurately measures the melt flow rate (MFR) of thermoplastic materials by controlling temperature and applied load, providing reliable flow characteristics for research, quality control, and material evaluation.
Key Specifications
Temperature Range
40 – 450°C
Temperature Stability
±0.2°C
Test Range
0.1 – 150 g/10 min
Display
Color Touch Screen
Global Shipping
50+ countries
2-Year Warranty
Parts & service
Expert Support
Dedicated team
Have a question about this instrument?
Talk to an expertProduct Introduction
The TS-MI-CPV Melt Flow Indexer is a precision instrument built to determine how a thermoplastic material behaves once it moves into a viscous, molten state. By holding a sample at a controlled temperature and applying a fixed load, the instrument measures how much material flows through a standardized die opening over a ten-minute interval, generating a reliable Melt Flow Rate (MFR) reading for every batch tested.
It is engineered to handle materials across a wide temperature window, which means it comfortably tests demanding, high-temperature engineering plastics such as polycarbonate, aromatic sulfone resins, fluoropolymers, and nylon, as well as everyday commodity resins with lower melting points, including polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS, polyoxymethylene (POM), and additional polycarbonate (PC) grades.
Key Features
- Chinese/English color touch screen — an intuitive interface that lets operators switch languages and navigate settings with ease.
- Automatic hand cutting mode — the cutting cycle can be run automatically or switched to manual, giving operators flexibility for different test routines.
- Dual temperature control system — two independent control loops deliver more precise temperature regulation and faster, more efficient heating.
Technical Parameters
| Items | Melt flow index |
| Temperature Range | 40℃-450℃ |
| Temperature drift | 4hour， ≤0.5℃ |
| Display Device | Touch screen controlled |
| Temperature fluctuation | ± 0.2℃ |
| Temperature uniformity of 10mm-70mm above the die | ± 1℃ |
| Temperature display resolution | 0.1℃ |
| Time display resolution | 0.1S |
| Cutting timing range | 1-999S adjustable |
| Mouth mold diameter | Φ2.095±0.005mm ( Mouth Radius : 1.05 mm + 0.005 ) |
| Discharge hole length | 8.000 ± 0.025mm |
| Piston rod diameter | 9.474 ± 0.007mm |
| Piston rod length | 6.35 ± 0.13mm |
| Loading container diameter | Φ9.550 ± 0.007mm |
| Test range | 0.1-150g / 10min |
| Farmar precision | ± 0.5% |
| Stroke precision | 0.01mm |
| Volume method timing accuracy | 0.001S |
| Displacement measuring encoder | Omron photoelectric rotary encoder |
| Testing scope of mass method | 0.1-150g /10min |
| Test range by volumetric method | 50-5000cm³/10min （ It can measure up to 5000 cm3/10min by using the plugging die ） |
| Output way | Micro automatic printout |
| Blanking way | Hand automatic cutting can be switched |
| Test farmar ( weights) | total 8 grades, 8 sets of weights |
| Power supply | AC220V±10% 50HZ |
Standard Accessories
Test Weights
Each unit ships with a full set of test weights (8 grades / 8 sets) covering the instrument's standard load range.
Cleaning Tools
Barrel and die cleaning brushes and rods are included for routine maintenance between tests.
Assembly Tools
Piston and die assembly tools, including a screwdriver and wrench, are supplied for routine operation and maintenance.
